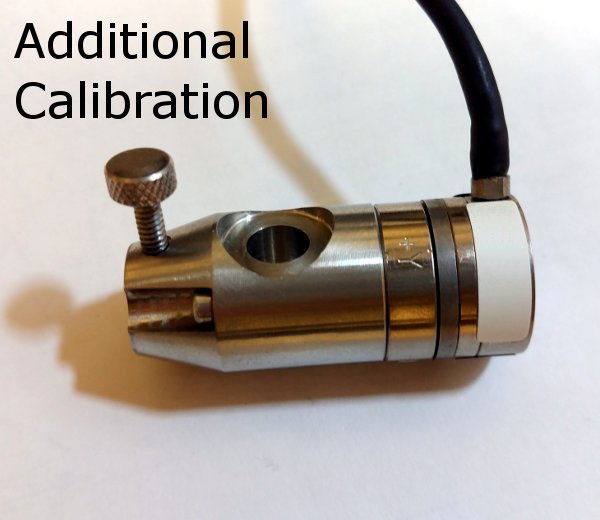

Load Cells: Extended Calibration Range for Multiple-Axis Load Cells

An additional calibration expands the usable load range of a multiple-axis load cell. This calibration is provided through an additional amplification module to which the multi-axis load cell can be connected. Only one calibration can be active at a time; however, the load cell can be freely swapped between any available amplification modules. This specific module is calibrated for the lowest available load range, making it ideal for applications involving lower forces and torques where higher measurement precision is required. Key Features:

• Easy to assemble and mount on the tester
• Compatible with multiaxial load cells
• The world’s smallest commercially available 6-axis transducer

Additional Calibrations Available for Multiple-Axis Load Cells MA239: Additional Calibration (17 N) and Amplification Module MA240: Additional Calibration (70 N) and Amplification Module MA241: Additional Calibration (35 N) and Amplification Module
