BelloCell® High Density Bioreactor
Bioreactor system with Macrocarriers.

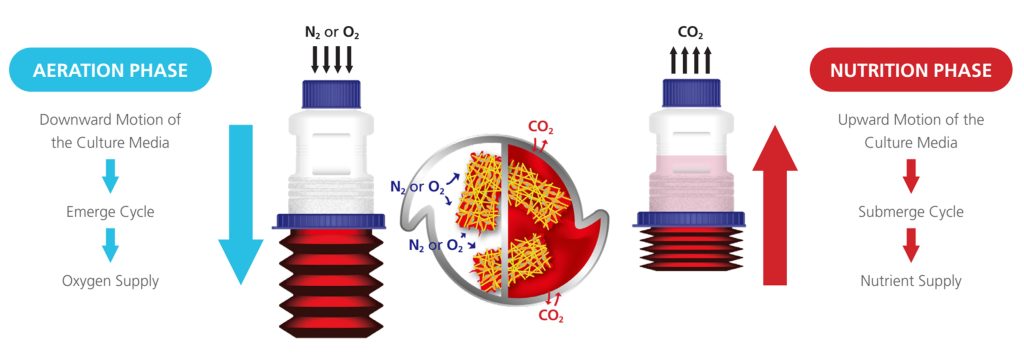

The disposable BelloCell® is based on the concept of bellow-induced alternating flow of media and air through porous BioNoc II® or BioMESH® macorcarriers, where cells reside and grow, providing low shear stress, high aeration and foam-free culture environment, thus enabling culturing of high cell densities.
- Disposable high-yield cell culture system
- Applications: Mammalian and insect cell culture, cell proliferation, cell mass production, generation of recombinant proteins, viruses, production of EVs/exosomes, production of monoclonal antibodies, proteome and drug research, and more
- Systems with or without continuous media recirculation

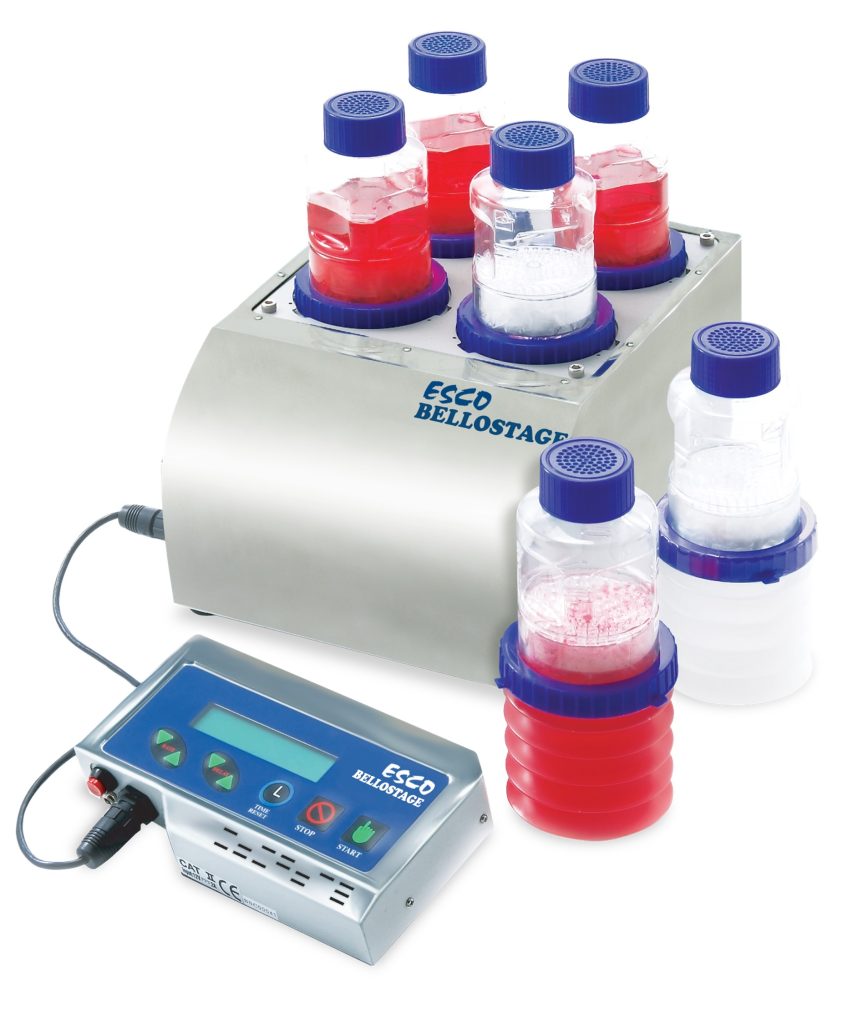

- Consists of the BelloStage®-3000 compressor, sterile single-use BelloCell® bottles, BioNoc II® or BioMESH®macrocarriers, and optionally the BelloFeeder®-1500 pump
- BioNoc II® macrocarrier made from 100 % PET fibers, pore size 50-200 Μm, non-pyrogenic, autoclavable, specific surface area 2.400 cm2/g, for up to 1 billion cells/g macrocarrier
- BioMESH® macroporous carriers are low-lint grid-like cell culture carriers (pore sizes: PP net 670 Μm/ PET Mesh 200 Μm) with a specific surface area of up to 10.000 cm2 per 0,1 liter bed volume and recommended for high cell density harvesting applications
- Different bottles for batch and for continuos cultivation available
- The cell mass produced by one BelloCell® bottle (standard bottle with 5,5 g BioNoc II® macrocarriers) is comparable to 20 - 30 roller bottles
further information about the product (PDF)
