• Automatic evaporator for use with liquid handling systems.
• Plate shuttle sends/retrieves plates from robot deck, compatible with robotic liquid handlers from Agilent™, PerkinElmer^®, Tecan^®, HamiltonTM and Beckman Coulter^®.
• Adjustable shuttle position and height.
• Choice of 12-, 24-, 48-, 96-, and 384-well heads with straight or spiral needles.
• Increased rate of sample dry down with evaporation temperature of 80 °C which reduces drying times up to 50 %.
• Manufactured for use with ANSI/SLAS standard plates with a maximum height of 80 mm (only in combination with 96-well needle head 500199, otherwise 55 mm), Mistral XT150 accepts plates or vials up to 150 mm high.
• Up to 15 stored evaporation programmes and up to 5 programmable steps per method.
• New PAUSE mode for improved method development.
• Rise and height of evaporation table, gas temperature, pressure and flow rate can be programmed individually.
• Small footprint to fit into all standard fume cupboards.
• Unit can be used with nitrogen or dry compressed air.
• On-board digital flow controller allows accurate programming of real gas flow rates.
• Intuitive graphical colour touch screen display with optional anti-splash membrane.
• Integrated LED lights for better sample visibility.
• Also suitable for evaporation of HPLC samples  in 1.5 ml HPLC vials using the 48-well head.
• RS232 allows remote control via PC or liquid handling robot.
• CAN bus gives possibility to main- and several secondary system configurations.
• Integrated auto-ranging power supply (110/230 V) and  built-in fume venting.

further information about Porvair Equipment (PDF)

• Automatic robot-compatible evaporator.
• Choice of 12-, 24-, 48-, 96-, and 384-well heads with straight or spiral needles.
• Increased rate of sample dry down with evaporation temperature of 80 °C which reduces drying times up to 50 %.
• Offering multi-step ramped programming with full alphanumeric programme naming.
• Possible to save data on SD-card and upload it again.
• Up to 5 stored evaporation programmes with 3 programmable steps per method.
• New PAUSE mode for improved method development.
• Rise and height of evaporation table, gas temperature and flow rate programmable.
• Full colour touch screen display.
• RS232 allows remote control via PC or liquid handling robot.
• Can evaporate 500 Μl methanol in approx. 5 minutes.
• Compatible with robotic liquid handlers such as from Tecan^®, Hamilton™ and Caliper™.
• Integrated auto-ranging power supply (110/230 V) and built-in fume venting.
• Accommodates plates up to 80 mm in height in a variety of configurations.
• Also suitable for evaporation of HPLC samples in 1.5 ml HPLC vials or 2 ml Dram vials using the 48-well head.
• On-board digital flow controller allows accurate programming of real gas flow rates.
• Can be operated from a gas cylinder, an in-house supply of nitrogen or clean dry air.
• Integrated LED lights for better sample visibility.
• (w x d x h): 196 x 435 x 455 mm

further information about Porvair Equipment (PDF)

• Automated sealers for microplates and tube racks.
• Ideal for PCR, qPCR and other assays and storage-based applications.
• Protect samples from evaporation and contamination.
• Can be integrated into lab automation via RS232.
• Suitable to use with shallow- and deep-well formats, standard and customized plates made of PS, PP, PC, CoC or CoP.
• Ultraseal™ ePRO also can handle gas permeable films.
• Ultraseal™ PRO and Ultraseal™ XT-PRO also can handle tube racks.
• Accept formats between 7 mm and 45 mm in height.
• Seal up to 6 plates per minute or 24 tubes simultaneously.
• Operator friendly and easy to programme.
• Cuts film to the desired length:
  • Ultraseal™ PRO: 125 to 130 mm
  • Ultraseal™ ePRO: 116 to 128 mm
  • Ultraseal™ XT-PRO: 125 to 130 mm

• Ultraseal™ PRO is a pneumatic and electric device which requires a power and compressed air supply rated to min. 5.5 bar to max. 6.5 bar at 50 litres per min
• Optional gas purge for greater protection of samples available for Ulraseal™ PRO
• Ultraseal™ ePRO and XT-PRO operate all electric and do not need compressed air supply
• Optionally available with plate shuttle
• 110 / 220 VAC supply / multi-voltage

Measurements:

• Ultraseal™ PRO: 630 x 195 x 450 mm (l x w x h), approx. 12 kg
• Ultraseal™ ePRO: 845 (shuttle out) x 234 x 530 mm (l x w x h), approx. 12 kg
• Ultraseal™ XT-PRO: 625 x 175 x 440 mm (l x w x h), approx. 12 kg

further information about Porvair Equipment (PDF)

• Automates application of adhesive film to microplates and tube racks.
• Works with a wide range of plates, tube racks and custom applications.
• Seals polystyrene, polypropylene, CoC and CoP plate formats with plate heights from 7 to 48 mm.
• Operates with aluminium or plastic film rolls approx. 78 to 85 mm wide and 200 m long.
• Cuts films to the desired lengths between 124 mm and 130 mm.
• Easy to programme.
• Operator friendly.
• Can be operated both pneumatically and electrically.
• Can be integrated with the “Scorpion” plate handler.
• (w x d x h): 370 x 700 x 453 mm, 15 kg
• 110 / 220 VAC supply / multi-voltage

further information about Porvair Equipment (PDF)

3 models: MicroLute™ Manifold, Universal Robotic Manifold and UltraPPM LITE

Microlute^® Manifold (Acryl Extraction System)

• Suitable for most filter plates in ANSI/SLAS standard with long drip directors and for SPE plates, i. e. Microlute^®.
• Valve controlling knob (on-off) for precise control of vacuum.
• Compatible with deep well collection plates with square wells of 350 Μl, 1 ml and 2 ml and plates with a height up to 44 mm.
• Airtight sealing through O-ring, removable cover plate.
• Medium resistance to alcohols and weak acids.
• Machined from crystal clear acrylic (top plate) and acetal polymer (plenum chamber).

further information about Porvair Equipment (PDF)

• Designed to be easily assembled and disassembled by robotic manipulators.
• Compatible with any filter plate type with short, medium or long drip directors (adapter available).
• Automated purification of SPE- or DNA clean-up procedures.
• Integrated valve for vacuum to provide complete control of vacuum pressure.
• Fully compatible with most commercial robotic liquid handling systems.
• Able to accommodate collecting plates of 14 mm – 44 mm in height.
• Chemically resistant.

further information about Porvair Equipment (PDF)

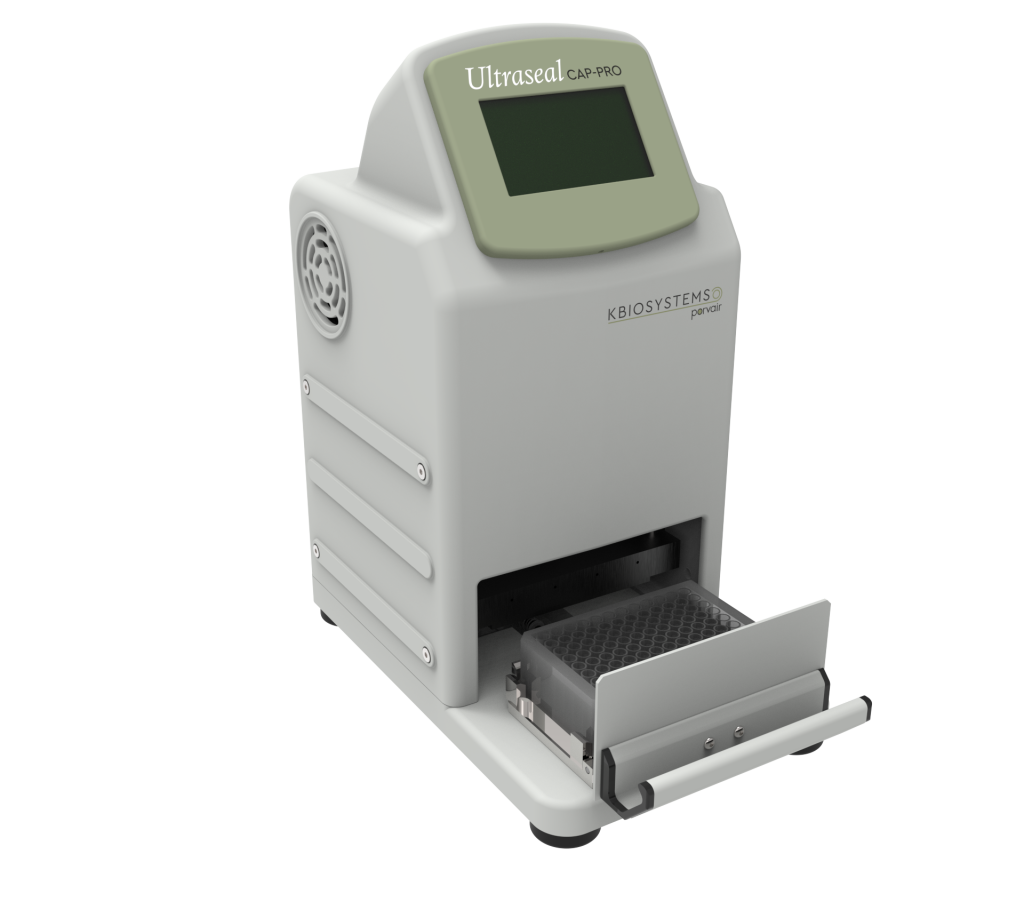

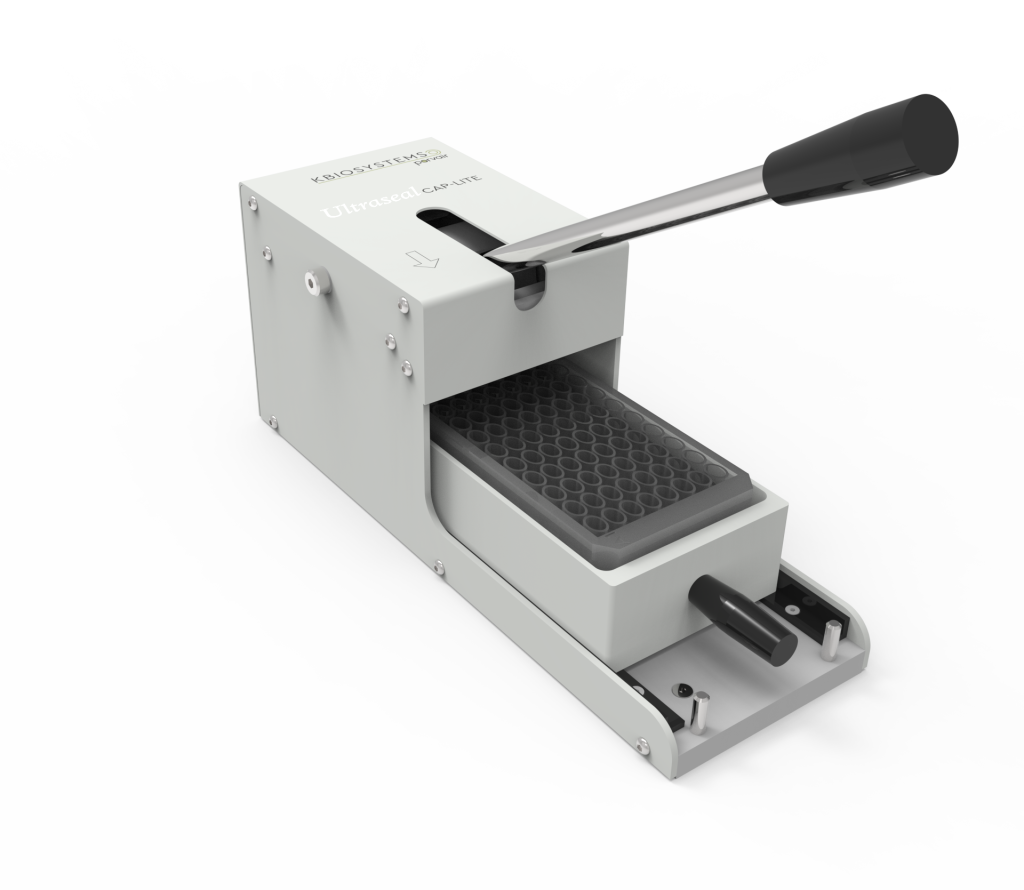

• Designed to apply friction sealing mats or septum sealing caps to SBS-format tube racks.
• Consistent even pressure is applied to the mat to ensure each tube or well is tightly sealed.
• More reproducible, quicker and less likely to cause a strain injury than trying to do this manually.
• Small compact design allows it to place the device on all laboratory benches.
• Just requires power supply of 220 V.
• Three pressure settings:
  • Low – 100 kg max force
  • Medium – 180 kg max force
  • High – 250 kg max force

• Compatible with most commercially available septum cap mats, 2D coded and uncoded tubes and SBS-format racks (24-, 48- and 96-tube plates).

further information about Porvair Equipment (PDF)

• Automated plate handling for a number of liquid handling systems.
• Very versatile: works with a wide range of plates, tube racks, shallow and deep well microplates.
• Can accommodate up to 50 x 96-well plates or up to 72 x 384-well or 1536-well plates.
• 4 standard formats: standard left or standard right feed, offering side placement from plate centre to plate centre with maximum arc to 280 mm or extended with maximum arc to 342 mm.
• Easy to programme.
• Operator and integrator friendly.
• Direct integration via RS232 link.
• Suitable for all SLAS/ANSI sized applications and a range of racks.
• Handles all plates with or without lid (lid lift available optionally).
• (w x d x h): 773 x 655 x 650 (full height) or 325 mm (half height)

further information about Porvair Equipment (PDF)
