N-Biotek

N-Biotek

Laboratory Equipment from N-Biotek

  • MiniCell – small portable CO₂ incubator
  • CO₂ incubators
  • Max Cell – large capacity CO₂ incubators – 880 liter
  • Large CO₂ incubators with integrated orbital shakers
  • Benchtop CO₂ incubators with integrated orbital shakers
    • NB-206CL with 2 shakers
    • NB-203QS with 1 shaker
  • Incubator with integrated orbital shaker
  • Stackable incubators with integrated orbital shaker
  • Shaking incubators with touch screen
  • Shaking incubators with cooling feature
    • Benchtop incubator (NB-205LF)
    • Floor standing incubator (NB-205V)
  • Orbital shakers with touch screen
  • Water baths
    • Water bath for general applications
    • Water baths with shaking feature
  • Vacuum evaporator
  • Multi functional workstations – with integrated LAF, centrifuge and shaking incubator
Learn more
NBiotekLogo-1920w
NBiotekNB203QS-1920w-711x1024
NBiotekNBT-205-2880w
MiniCell_front-848x1024

Contact Person

Jennifer Szlapa

Get in touch with us
Back to overview

Similar products
ShelLab/Sheldon
Learn more
IBI Scientific – Laboratory Equipment
Learn more
Monmouth
Learn more

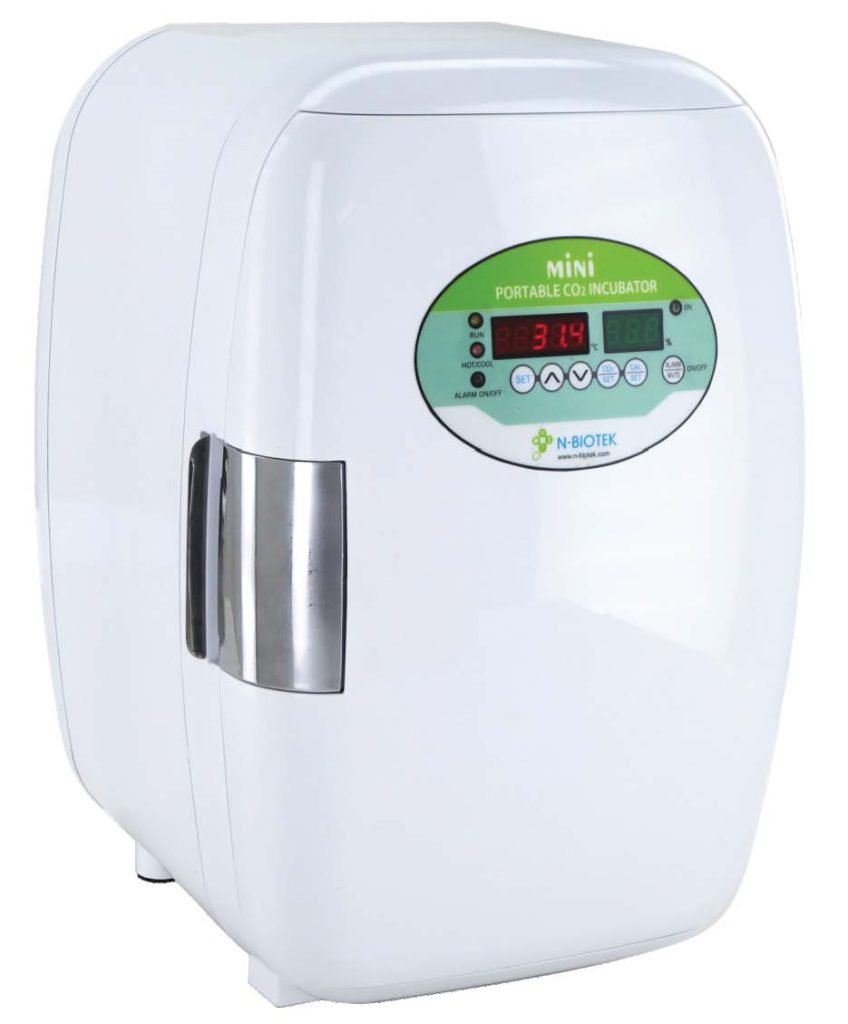

“MiniCell”™- small portable CO2 Incubator

  • Compact incubator with carrying handle for easy transport
  • Capacity: 15.2 l
  • Internal dimensions (w x d x h): 224 x 200 x 340 mm
  • External dimensions (w x d x h): 292 x 333 x 433 mm
  • Weight: 6.8 kg
  • Temperature range: 15 °C to approx. 45 °C at ambient 25 °C
  • Cooling and heating by Peltier system for low-noise operation
  • CO2 range: 0 to 20 % (infrared sensor)
  • User-friendly, digital control with LED display
  • Uniform temperature
  • Supplied with water tray for natural humidity up to 80 %
  • Supplied with 2 stainless steel shelves  (max. 3 shelves can be fitted)
  • Also available as CO2 incubator: CO2 range: 0 to 20 % (infrared sensor)

further information about N-Biotek (PDF)

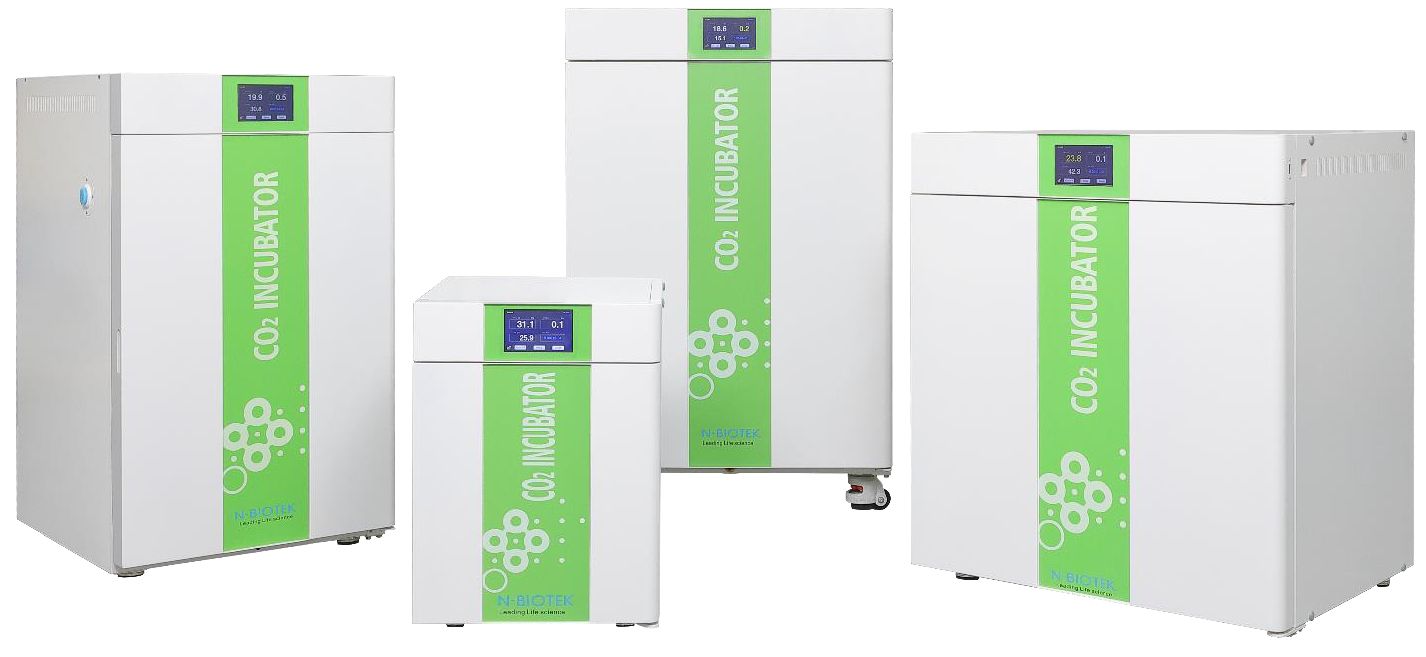

CO2 Incubators with or without Touch Screen

  • Temperature range: 5 °C above ambient to 60 °C
  • CO2 range: 0 to 20 % (infrared CO2sensor)
  • 5 different incubators with various capacities (15, 42, 180, 280 and 880 liters).
  • LED display
  • Stainless steel interior and shelves (perforated)
  • Double door: compact outer door and clear tempered safety glass inner door
  • Heated door prevents condensation on glass door
  • Supplied with water tray for natural humidity
  • Optional features:
    • UV or hot air sterilization
    • Split inner glass door
    • Humidity control or display only – CO2 control
    • HEPA filter
    • Kit to enable stacking of incubators
    • Copper interior instead of stainless steel
    • 25 mm Access port on left side
    • Further features available on request



further information about N-Biotek (PDF)

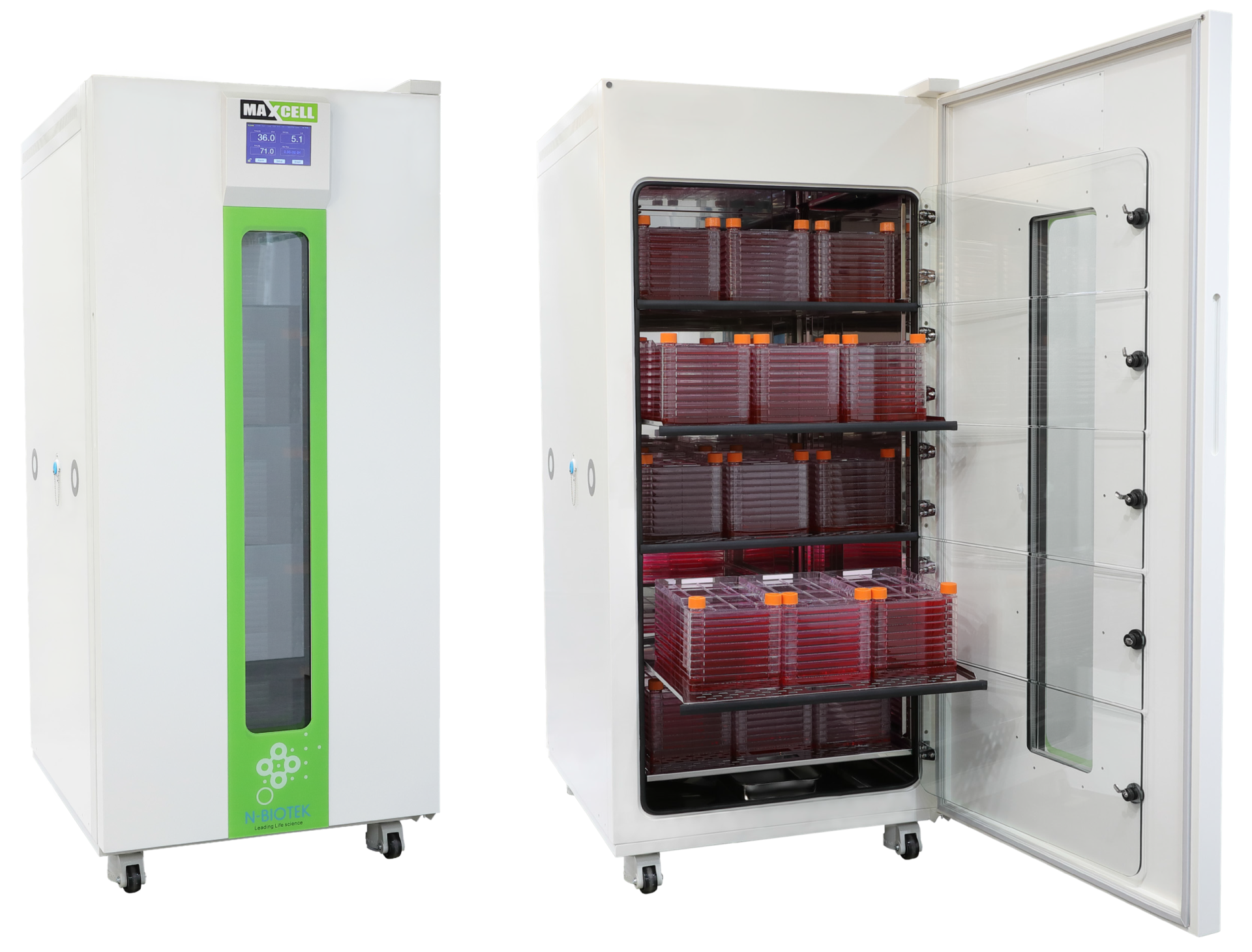

“Max Cell”™ – large capacity CO2 Incubators – 880 liter

  • Temperature range: 7 °C above ambient to 60 °C  (± 0.5 °C at 37 °C)
  • CO2 range: 1 to 20 % (Dual Beam IR CO2 Sensor); CO2 accuracy: ± 0.1 % at 5 %
  • Incubator with a microprocess PID control
  • Air jacket, 6 sides direct heating
  • Stainless Steel 304 interior and perforated shelves
  • Double door: powder coated outer door (heated) and clear tempered glass inner door (optional heated)
  • Supplied with water tray for natural humidity (80 – 90 %) or optional ultra sonic humidifier
  • Quantity of shelves depends on the model (0 – 5)
  • 7 inch full colour and user-friendly LCD touchscreen
  • Internal memory for recording up to 6 months with a USB 3.0 Port
  • Real-time monitoring system with a screen lock
  • Alarm for temperature, CO2, open door, sensor failure
  • Independent analogue thermostat for temperature safety
  • 4 x Fans at back bottom-most / Vertical Laminar Airflow
  • 2x Access Ports (each at left and right side)
  • Mobile due to four adjustable castors
  • Further optional features and accessories on request

further information about N-Biotek (PDF)

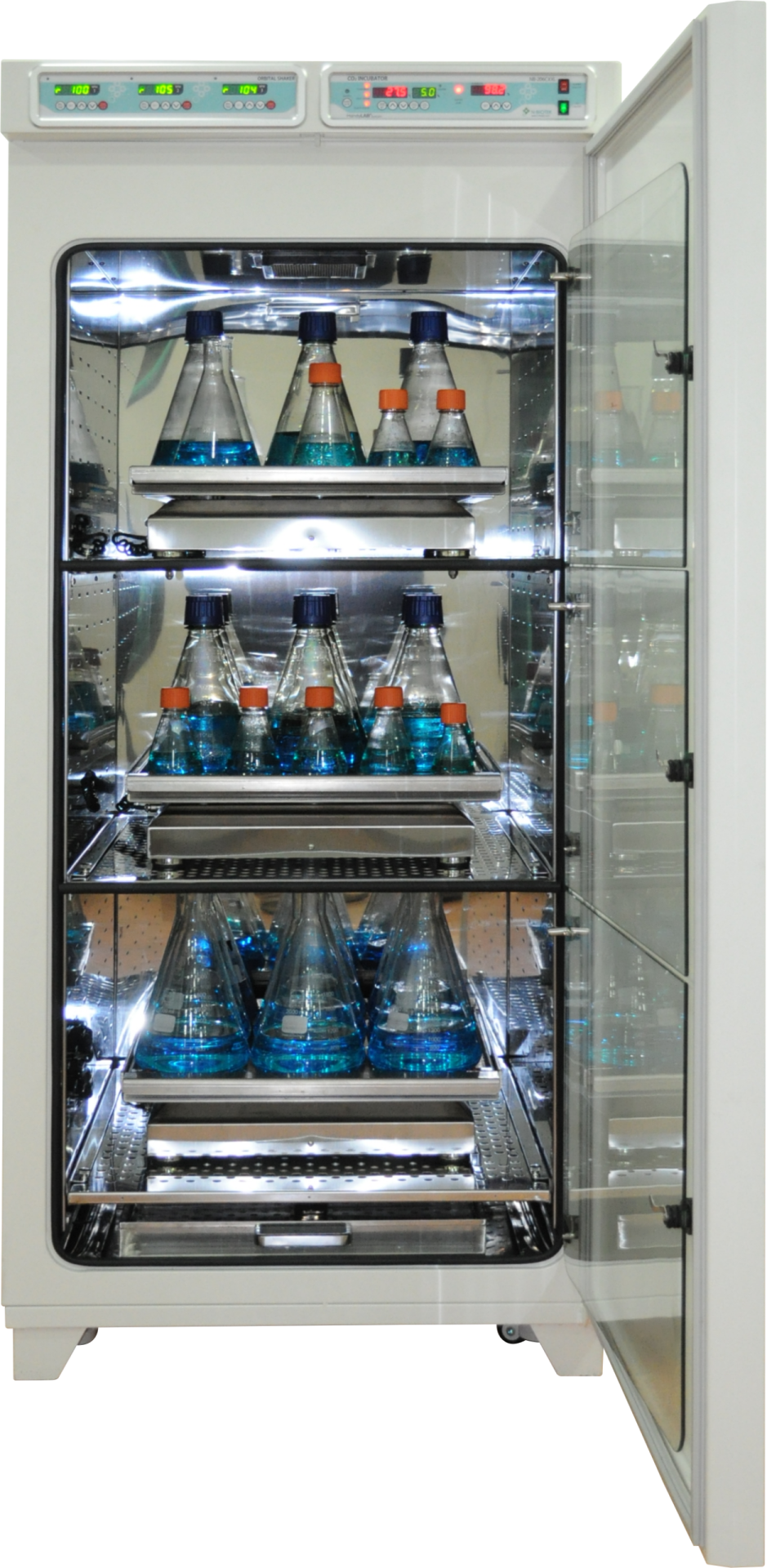

Large CO2 Incubators “Anicell” with integrated orbital shakers

  • Two models with capacities of 650 l and 850 l
  • Temperature range: 5 °C above ambient to 60 °C
  • CO2 range: 0 to 20 % (infrared sensor)
  • HEPA filter
  • Outer door with magnetic lock
  • Built-in UV lamp (4 W) with on/off switch
  • Interior divided into 3 compartments, separate inner door (made of tempered safety glass) per compartment, and 1 orbital shaker per compartment (3 shakers in total)
  • Each shaker controlled separately by control panel on outside of the incubator
  • Because distances between shelves can be varied and shakers can be removed 5 l to 10 l flasks can also be used
  • Specifications of integrated shakers:
    • Shaking speed: 30 to 200 rpm (± 1 rpm) or 30 to 250 rpm (± 1 rpm)
    • Orbital diameter: 25 mm
    • Dimensions of shaker (w x d x h): 465 x 520 x 125 mm
    • Dimensions of platform: 520 x 520 mm
    • Automatic stop/restart function if inner door is opened/closed
    • Choice of platforms with clamps for flasks, microplates, or tube racks available



further information about N-Biotek (PDF)

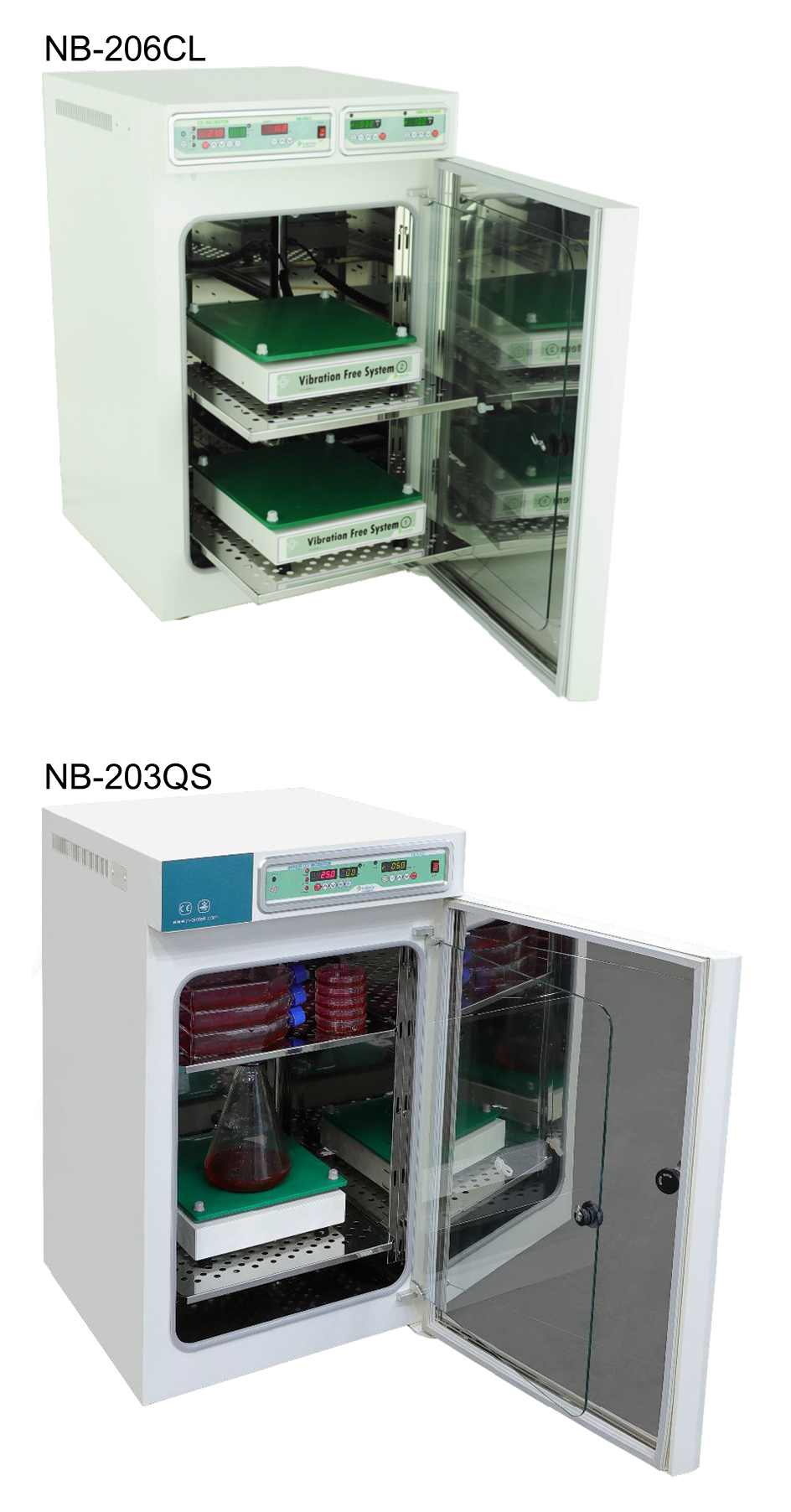

Benchtop CO2 Incubators with integrated orbital shakers

NB-206CL with 2 integrated orbital shakers

  • Capacity: 179 l
  • Two integrated shakers
  • Temperature range: 5 °C above ambient to 50 °C
  • CO2 range: 0 to 20 % (infrared CO2 sensor)
  • Each shaker controlled separately by control panel on outside of the incubator
  • Supplied with water tray for natural humidity
  • LED display
  • Outer door with magnetic lock

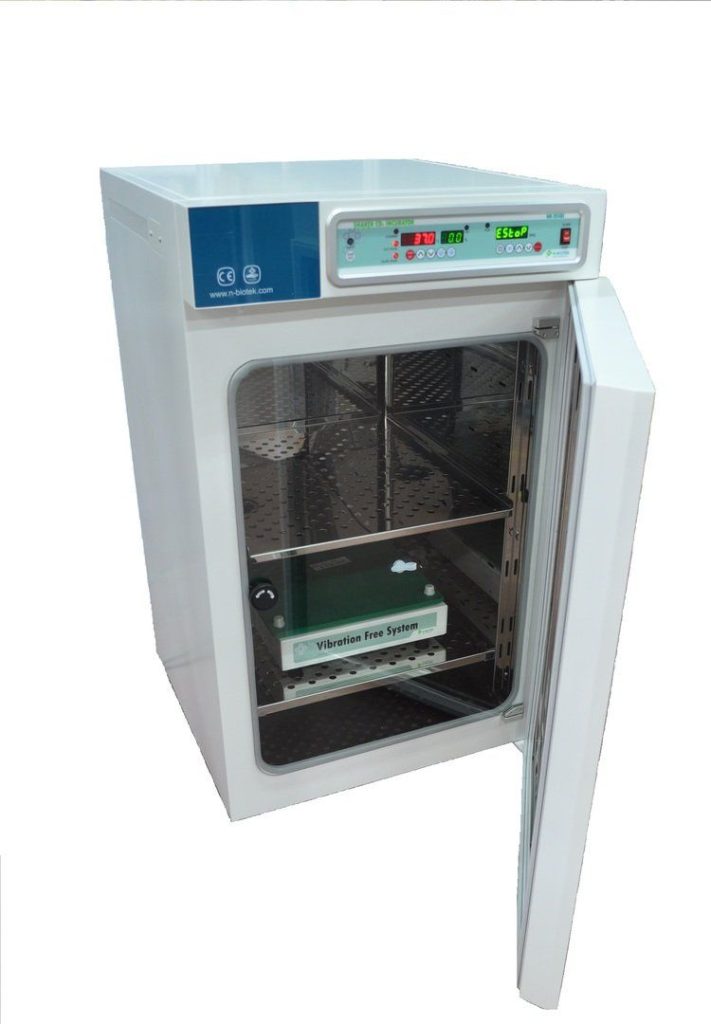

NB-203QS

  • Capacity: 179 l
  • One integrated shaker
  • Temperature range: 5 °C above ambient to 60 °C
  • CO2 range: 0 to 20 % (infrared CO2 sensor)
  • Shaker with external control panel
  • LED display



Specifications of integrated shakers in NB-206CL and NB-203QS:

  • Shaking speed: 30 to 300 rpm
  • Orbital diameter: 22 mm
  • Platform size: 300 x 330 mm
  • Optional platform to enable switch between orbital and reciprocal motion available
  • Choice of platforms with clamps for flasks, microplates, or tube racks available
  • The specifications of the integrated orbital shakers and the dimensions of the incubators and compartments are listed in our product brochure mentioned below.



further information about N-Biotek (PDF)

Incubator with integrated orbital shaker – NB-205Q

  • Capacity: 142 l
  • Temperature range: 5 °C above ambient to 60 °C
  • Supplied with:
    • 2 shelves
    • integrated orbital shaker (low vibration): 30 to 300 rpm
  • Microprocessor controlled incubator and shaker
  • LED display
  • Door with viewing window
  • Specifications of integrated shakers
    • Shaking speed: 30 to 300 rpm
    • Orbital diameter: 22 mm
    • Platform size: 300 x 330 mm
    • Optional platform to enable switch between orbital and reciprocal motion available
  • Choice of platforms with clamps for flasks, microplates, or tube racks available



further information about N-Biotek (PDF)

Stackable Incubators with integrated orbital shaker

  • Capacity: 149 l
  • Two models: with cooling function (NBT207F) and without (NBT207)
  • Temperature range:
    • NBT207: 5 °C above room temperature to 60 °C
    • NBT207F: 4 °C to 60 °C
  • User-friendly and intuitive LCD Touch Screen
  • Door with window
  • LED lamp on the inside of the incubator
  • Shaker controlled separately by control panel on outside of the incubator
  • Automatic stop function on door opening, stops heating and platform shaking
  • Standard model with integrated Access Port



Specifications of integrated orbital shaker:

  • Shaking speed: 30 to 300 rpm
  • Orbit diameter: 19 mm
  • Plattform size: 450 x 450 mm



further information about N-Biotek (PDF)

Shaking Incubators with touch screen

  • 2 versions in different sizes
  • User-friendly and intuitive LCD Touch Screen
  • Clear cover opening upwards
  • Temperature range: 5 °C above ambient to 60 °C
  • Shaking speed: 30 to 300 rpm
  • Orbital movement (Ø 22 mm)
  • Shaking stops when door is opened
  • Selection of platforms with clamps for flasks, microplates, or tube racks



further information about N-Biotek (PDF)

Shaking Incubators with cooling feature

General features:

    • Shaking speed: 30 to 300 rpm
    • Orbit diameter: 22 mm
    • Shaking stops when door is opened
    • Uniform temperature inside, built-in CFC-free compressor
    • Selection of platforms with clamps for flasks, microplates, or tube racks



Benchtop incubator (NB-205LF)

  • Large benchtop unit with clear cover that opens upwards
  • Temperature range: 12 °C below ambient (based on 25°C RT) to 60 °C
  • Defrosting system for long lasting cooling power
  • User-friendly and intuitive LCD Touch Screen



Floor standing incubator (NB-205V)

  • Viewing window in the door (door opens upwards)
  • Temperature range: 4 °C to 60 °C
  • Microprocessor controlled, LED display, stainless steel chamber
  • Uniform temperature inside, built-in compressor



further information about N-Biotek (PDF)

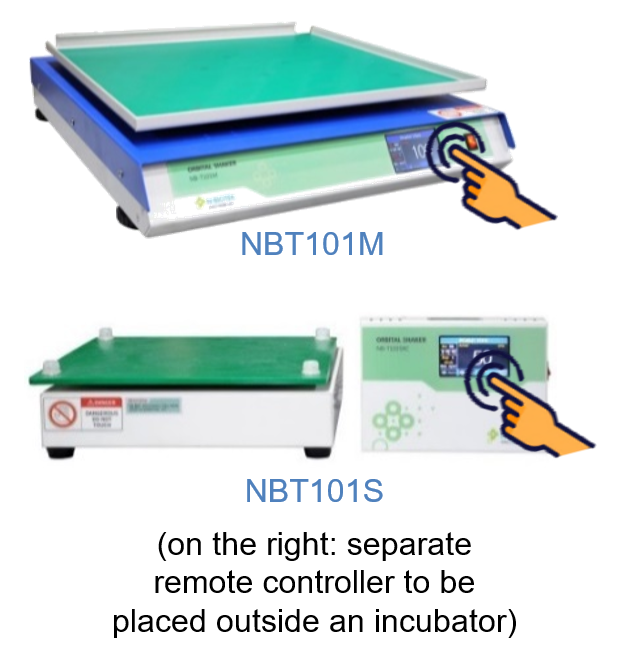

Orbital shakers with touch screen

and optional separate remote controller

  • 2 versions: mini shaker and standard shaker
  • User-friendly LCD Touch Screen
  • Units with separate remote controller can be used in incubators with a humidity up of to 85 % and an ambient temperature of 4 °C to 60 °C
  • Shaking speed: 30 to 300 rpm
  • Orbital diameter: 22 mm
  • Timer: 1 minute to 48 hours, or continuous operation
  • LED display shows shaking speed and shaking time
  • Choice of platforms with clamps for flasks, microplates, or tube racks
  • Optional platform to enable switch between orbital and reciprocal motion available



further information about N-Biotek (PDF)

Water baths

– also with shaking feature –

Water bath for general applications (NB-301)

  • Water capacity: 10 l
  • Temperature range: 5 °C above ambient to 99 °C
  • Engraved water level scale
  • Heater located underneath the water chamber
  • LED display for temperature, time and power failure



Water baths with shaking feature (NB-303)

  • Shaking speed: 30 to 200 rpm
  • Orbital shaking movement
  • Water capacity: 10 l
  • Temperature range: 5 °C above ambient to 80 °C
  • Heater located underneath the water chamber
  • Supplied with spring wire rack for safe positioning of vessels



further information about N-Biotek (PDF)

Vacuum evaporator

  • Infrared glass lid spreads heat and infrared radiation to reduce time required for evaporation of samples using vacuum e.g. for DNA or RNA samples
  • Temperature range: 35 °C to 65 °C (0.1 °C increments)
  • 3 selectable rotation speeds: 1,700 rpm, 2,500 rpm, or 5,000 rpm
  • Timer: up to 99 hours and 59 minutes
  • LED display for temperature and timer
  • Built-in oil-free vacuum pump (diaphragm pump)
  • Separately available rotors for different tube sizes (0.5 to 30 ml)



further information about N-Biotek (PDF)

Multi functional workstations

for cell isolation or cell handling

  • Possibilities of contamination are reduced since multiple operations can be performed with one equipment
  • The following integrated equipment is included:
    • Laminar air flow cabinet with HEPA filter and UV lamp
    • Centrifuge
    • Shaking incubator: 30 to 300 rpm and temperature range ambient 5 °C above ambient to 60 °C
  • Supplied with foot pedals to start and stop centrifuge and shaking incubator
  • Optional accessories on request



further information about N-Biotek (PDF)
