Products for Chromatography, Biotechnology and Environmental Analysis from J. G. Finneran

  • Chromatography Products
  • Environmental Analysis – Seals, Bottles and Lids
  • Multi-Tier 96-Well Microplate System
  • PTFE Sealing Film
Learn more
FBKlogo-vector-1024x513
402-536-JGF-791x1024
5250-11-all-JGF-1024x1024
9-093-JGF-family-791x1024

Contact Person

Dr. Kevin Denkmann

Get in touch with us
Back to overview

Similar products
Porvair Sciences – Consumables
Learn more
Porvair Sciences – Laboratory Equipment
Learn more
Excel Scientific – Sealing films
Learn more

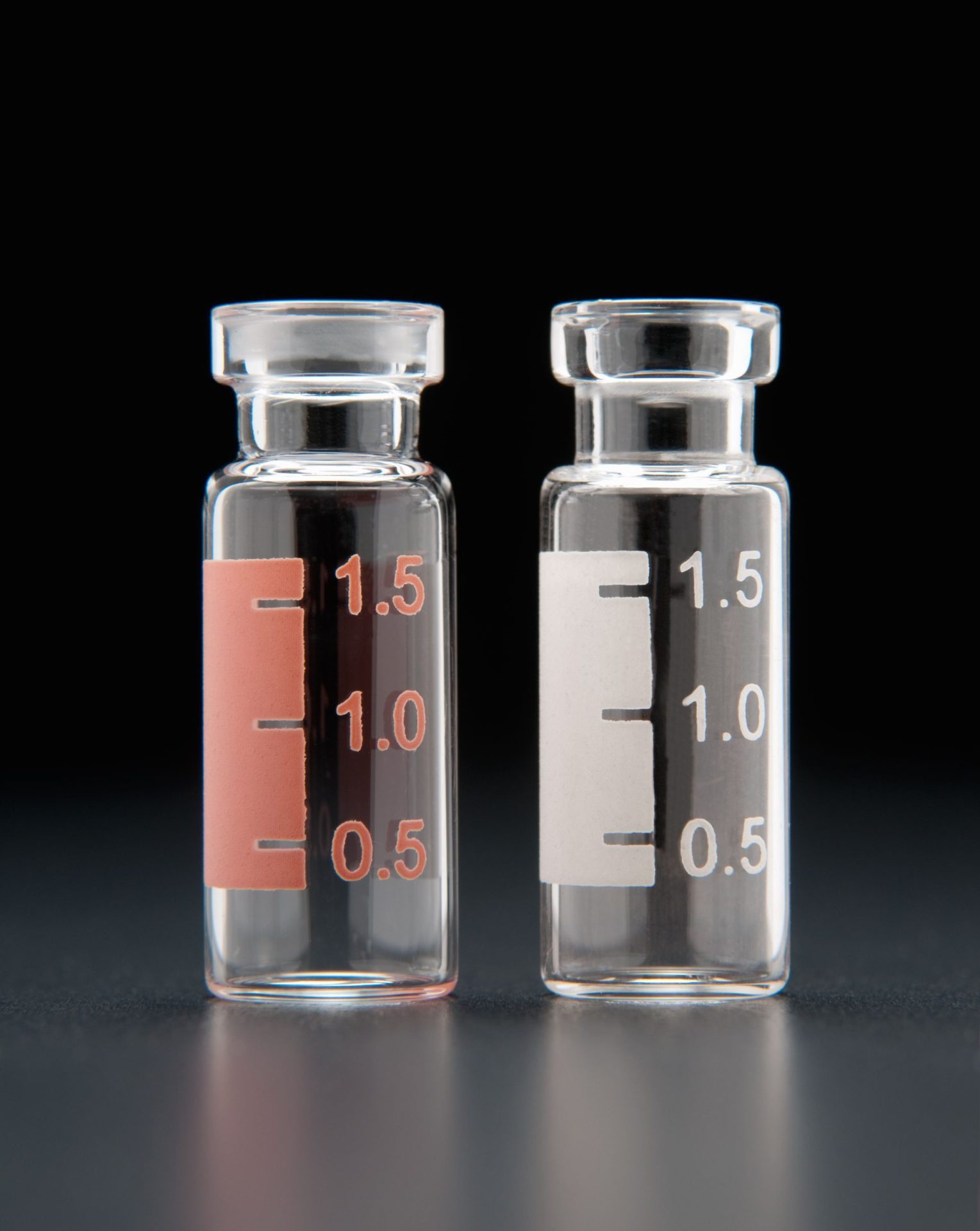

Standard beveled bottle, 12 x 32 mm, 11 mm rolled rim

    • Suitable for Agilent and other autosamplers
    • Available in brown or clear glass (borosilicate glass I)
    • Can be sealed with aluminum crimp caps or the patented “Poly Crimp™” caps
    • Various micro inserts available
    • Sample volumes from 100 µl to 2.0 ml
    • With or without labeling field and graduation
    • Label fields available in various colors



Further information on Finneran products (PDF)

Wide-mouth bottle, 12 x 32 mm, 11 mm rolled rim

    • The 40% wider bottleneck prevents needle breakage.
    • Suitable for Agilent and other autosamplers
    • Available in brown or clear glass (borosilicate glass I)
    • Can be sealed with aluminum crimp caps or the patented “Poly Crimp™” caps
    • Various micro inserts available
    • Sample volumes from 100 µl to 2.0 ml
    • With or without labeling field and graduation
    • Label fields available in various colors



Further information on Finneran products (PDF)

Snap Seal™ bottle, extra reinforced bottle neck, 12 x 32 mm, 11 mm snap ring – rolled rim

    • The special bottle neck design allows the use of “Snap Top Caps™,” eliminating the need for sealing pliers.
    • Suitable for Agilent and other autosamplers
    • Available in brown or clear glass (borosilicate glass I) or polypropylene, depending on the application
    • Can be sealed with aluminum crimp caps, the patented “Poly Crimp™” caps, or “Snap Top Caps™.”
    • Various micro inserts available
    • Sample volumes from 100 μl to 2.0 ml
    • With or without labeling field and graduation
    • Label fields available in various colors



Further information on Finneran products (PDF)

Snap ring bottle “Snap Ring™”, 12 x 32 mm, 11 mm snap ring – rolled rim

    • The special bottle neck design allows the use of “Snap Top Caps™,” eliminating the need for sealing pliers.
    • Suitable for Agilent and other autosamplers
    • Available in brown or clear glass (borosilicate glass I), “Glastik,” polypropylene, or polymethylpentene (TPX) – depending on the application
    • Can be sealed with aluminum crimp caps, the patented “Poly Crimp™” caps, or “Snap Top Caps™.”
    • Various micro inserts available
    • Sample volumes from 100 μl to 2.0 ml
    • With or without graduation and labeling field in various colors



Further information on Finneran products (PDF)

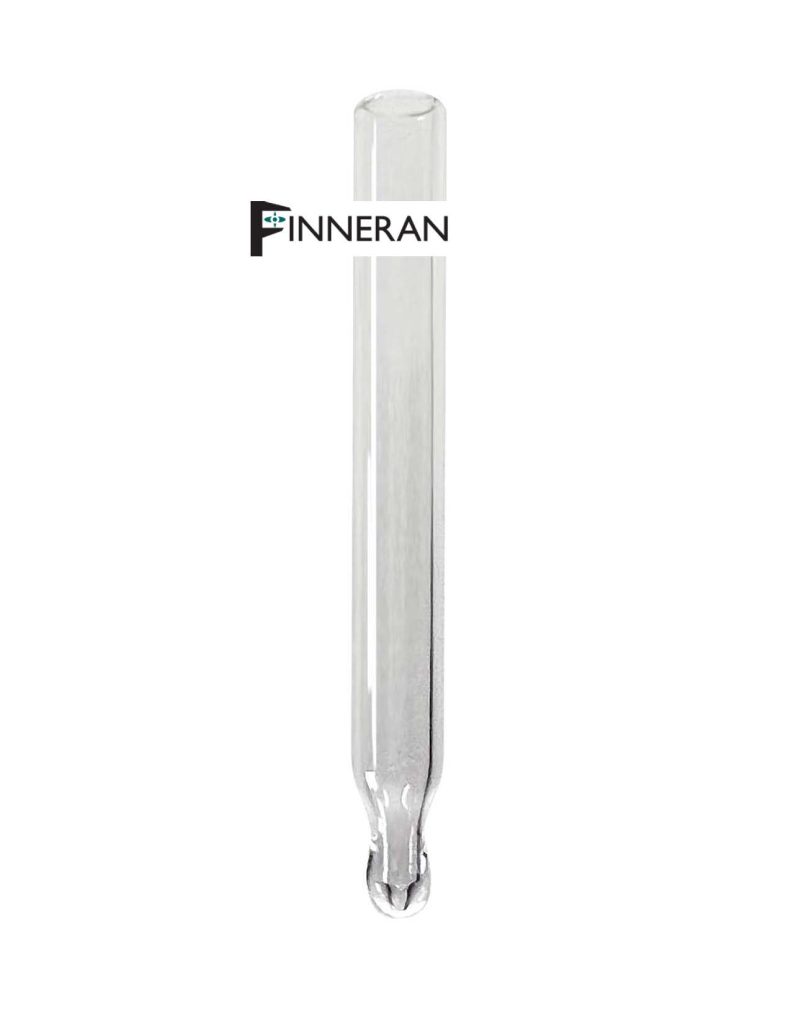

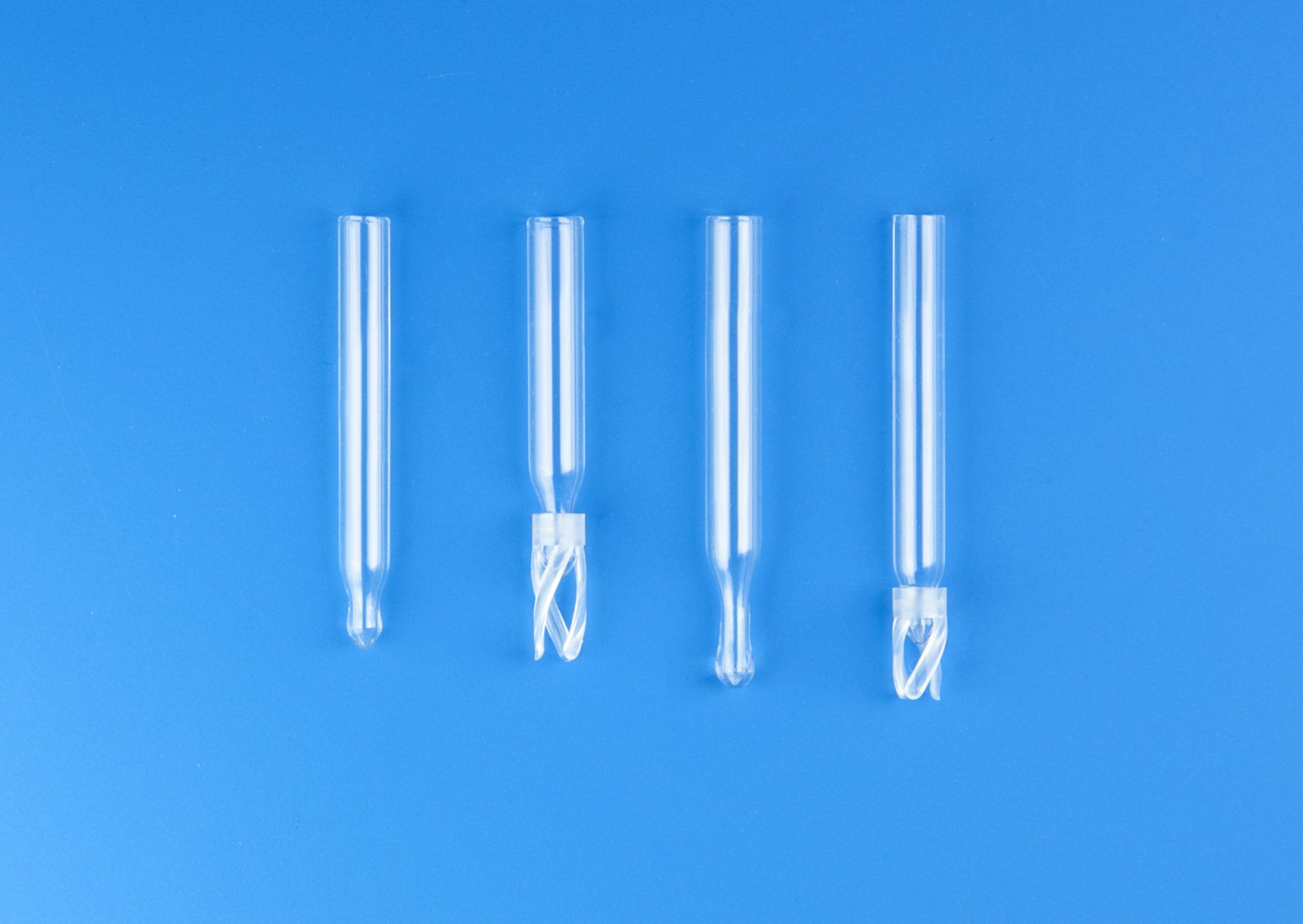

Micro inserts for 12 x 32 mm sample bottles

Micro inserts suitable for:

  • Wide-mouth bottles 12 x 32 mm
  • snap ring bottles
  • Snap ring bottles with reinforced neck
  • Threaded bottles ND8, thread 8 – 425 mm
  • Threaded bottles ND 9 R.A.M.™
  • Threaded bottles ND 10 Thread 10 – 425 mm



Variants:

  • Conical or cylindrical shape
  • With or without spring
  • Glass or polypropylene



Further information on Finneran products (PDF)

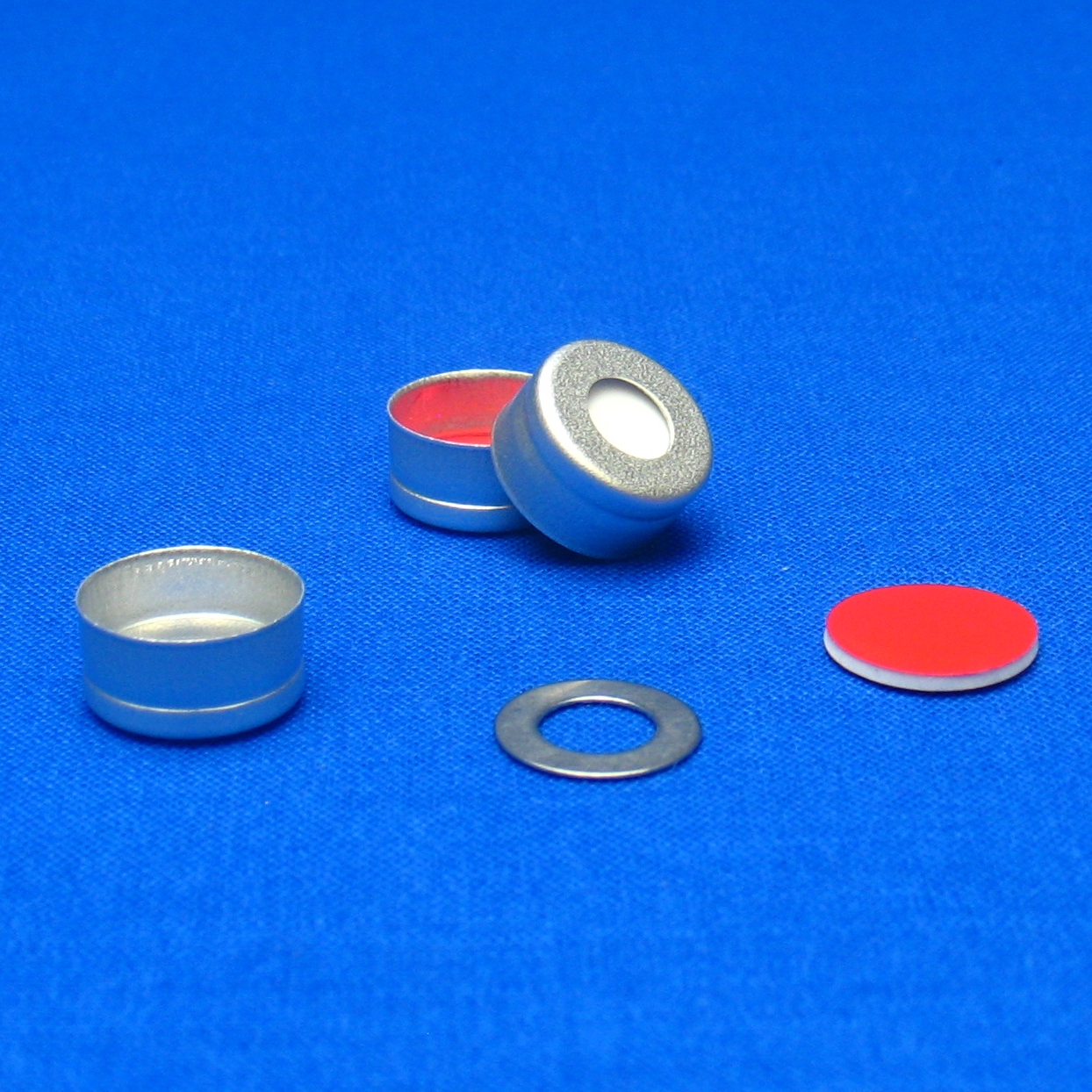

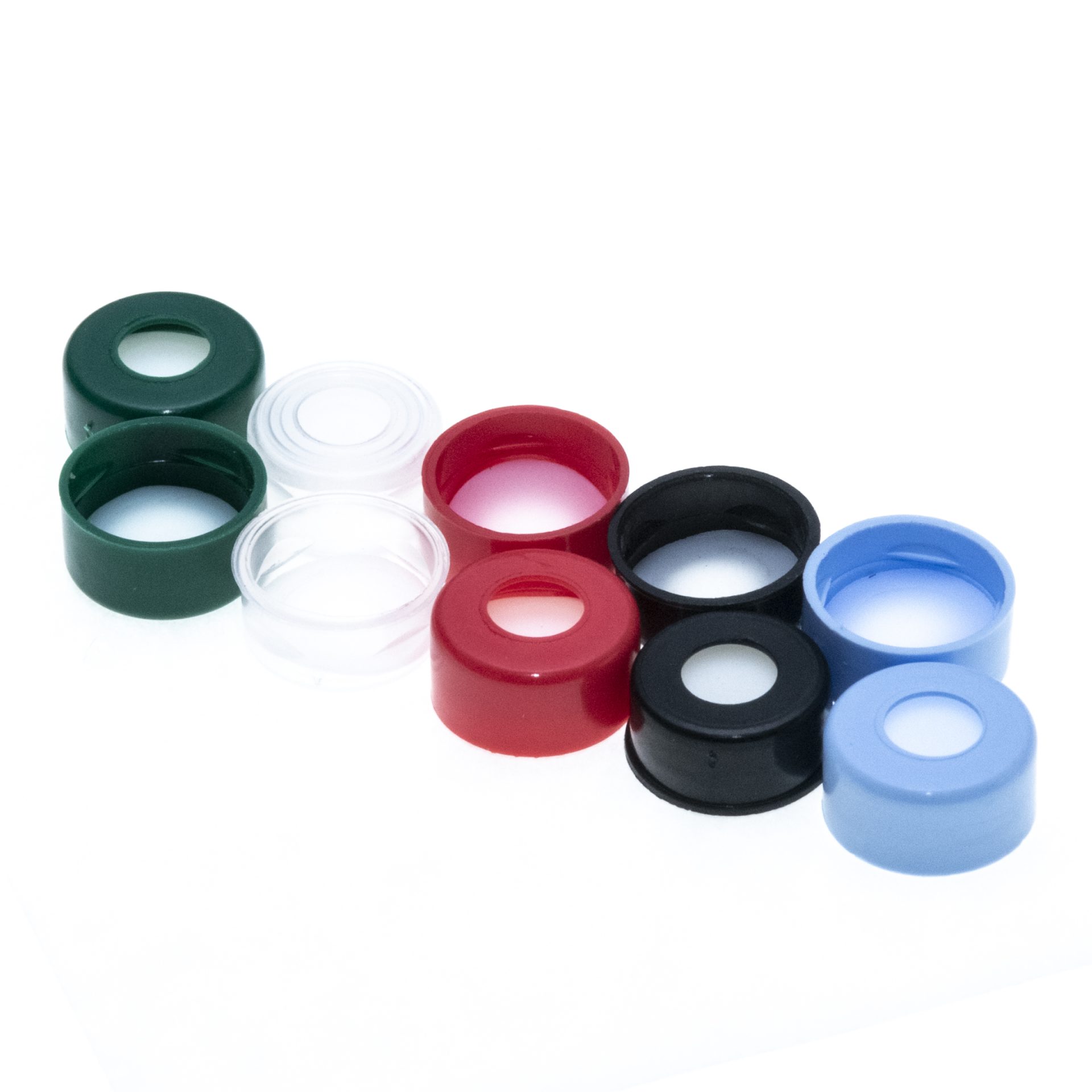

Flanged closures ND11

Aluminum caps suitable for all bottles with 11 mm rolled rim

  • Aus Aluminium
  • A wide range of colors for easy sample identification
  • Large opening for an enlarged piercing area
  • Wide selection of septa and seals



Further information on Finneran products (PDF)

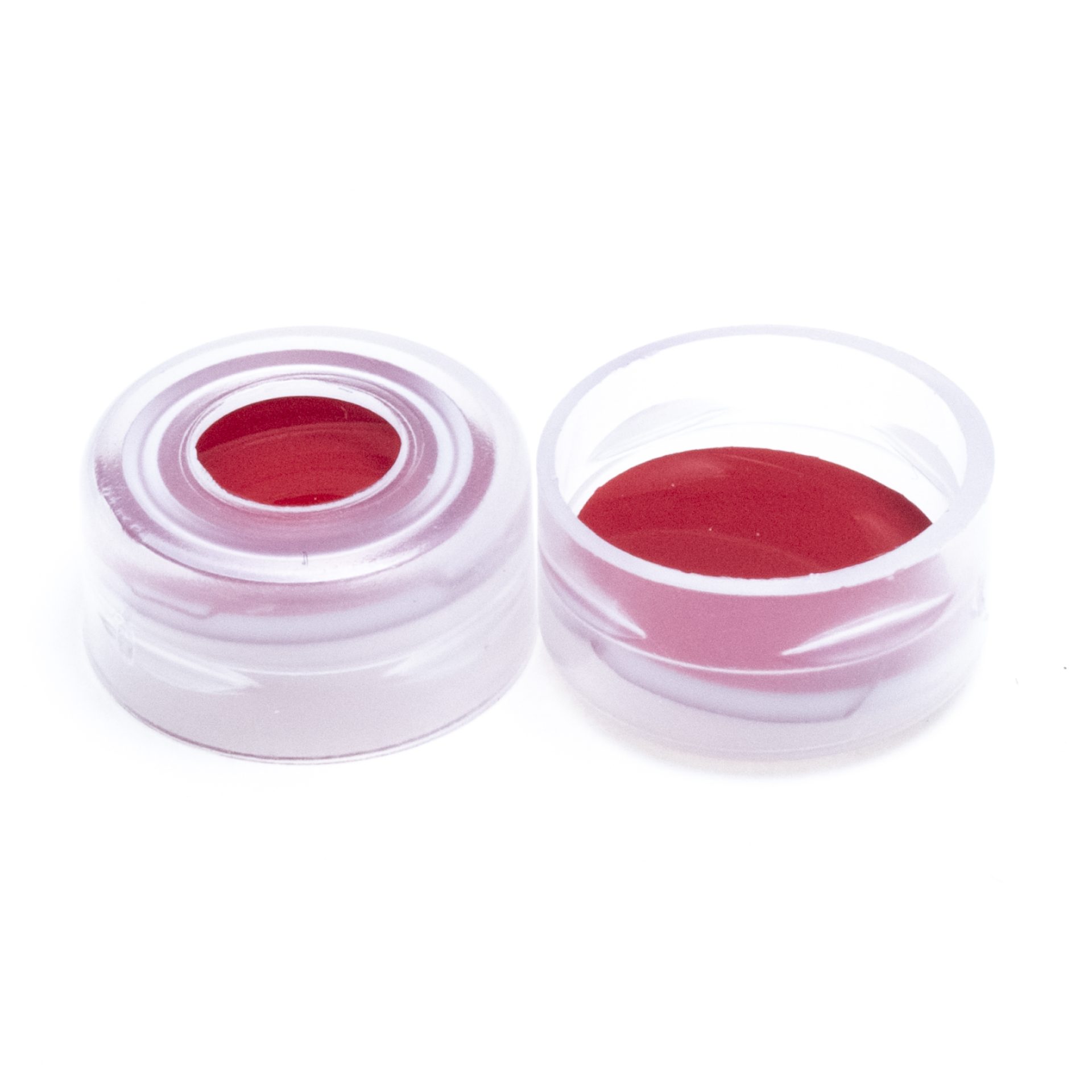

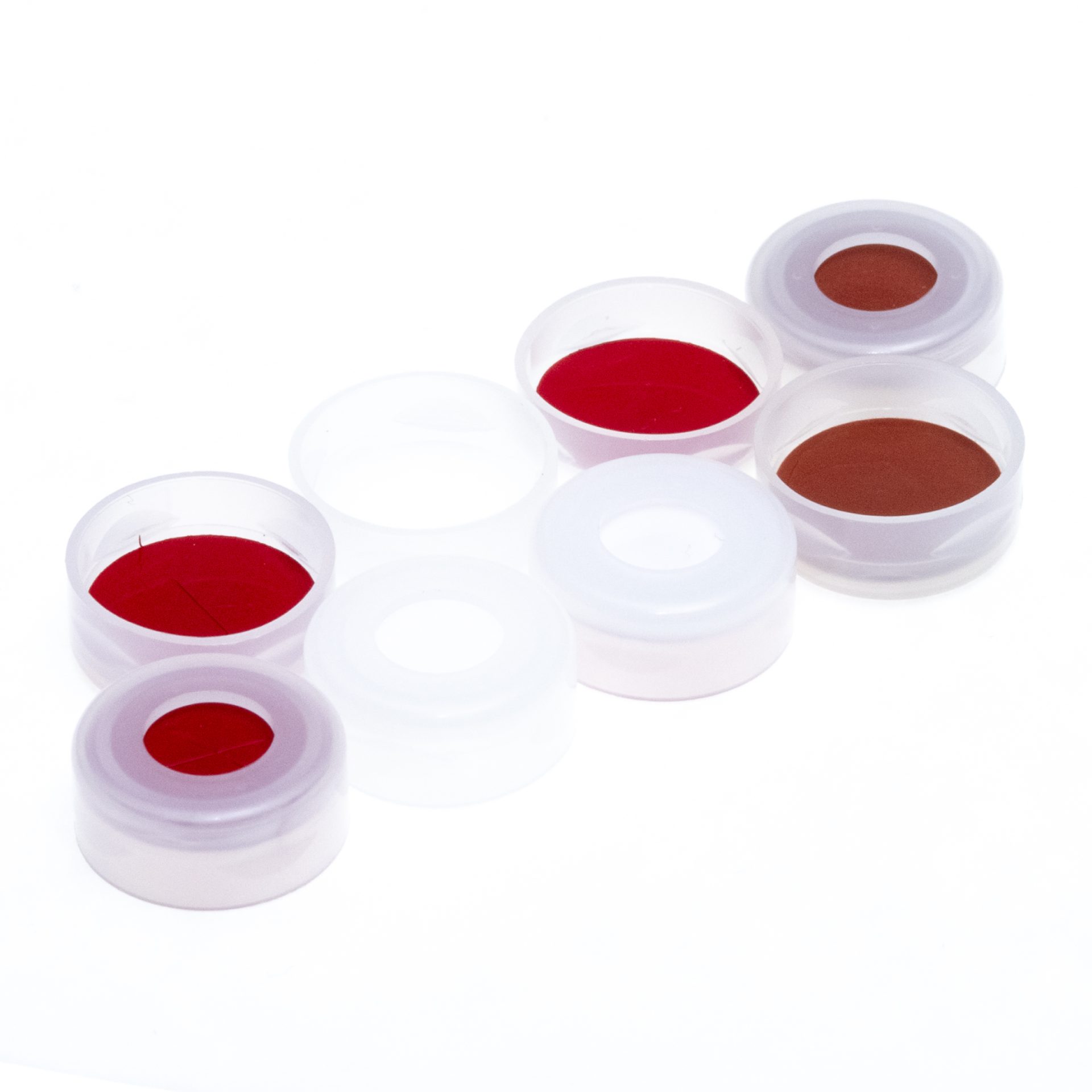

Poly Crimp™ closures ND11

Poly Crimp™ closures suitable for all bottles with an 11 mm rolled rim:

  • Made of plastic
  • Can be flared with standard flaring pliers
  • Airtight seal without tools
  • A wide range of colors for easy sample identification
  • Wide selection of septa and seals



Further information on Finneran products (PDF)

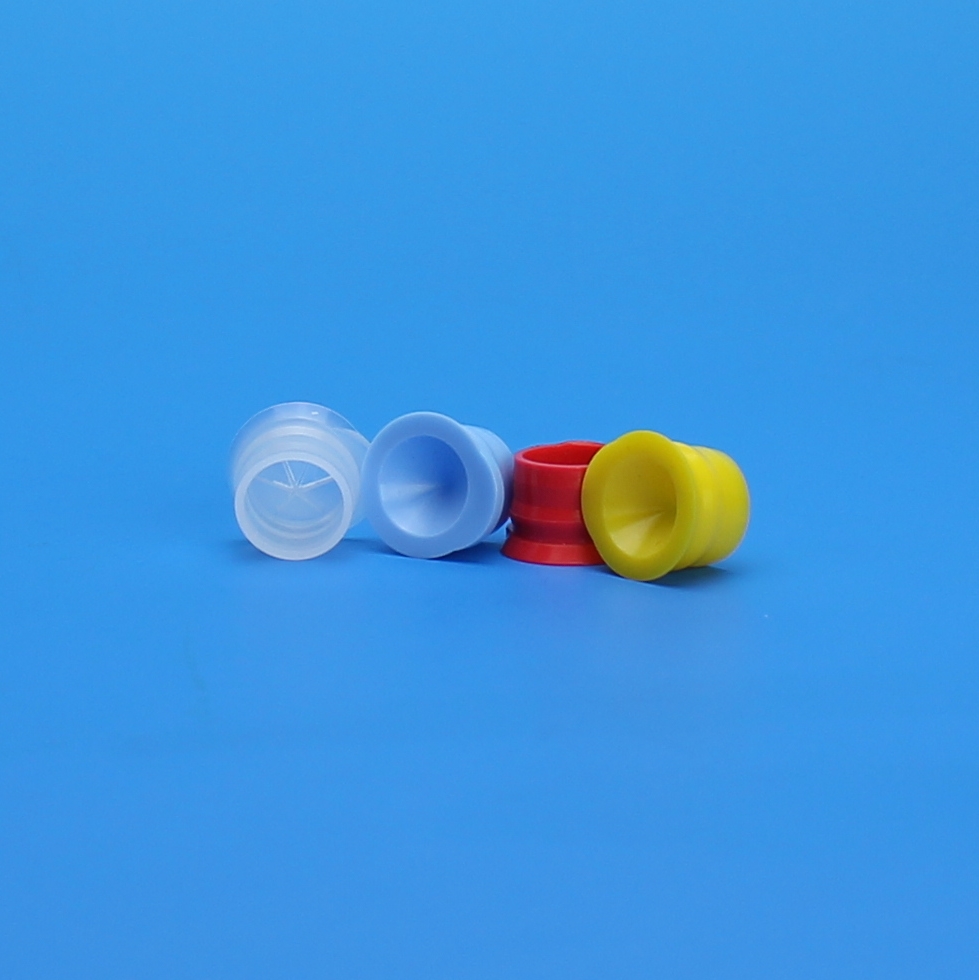

Snap ring closures “Snap Top Caps™” ND11

Snap Top Caps™ only suitable for snap ring bottles:

“Snap Ring™” or with reinforced neck “Snap Seal™”

  • Easy to close without tools
  • Made of plastic
  • A wide range of colors for easy sample identification
  • Also available in black, pink, dark blue, and orange
  • Wide selection of septa and seals



Further information on Finneran products (PDF)

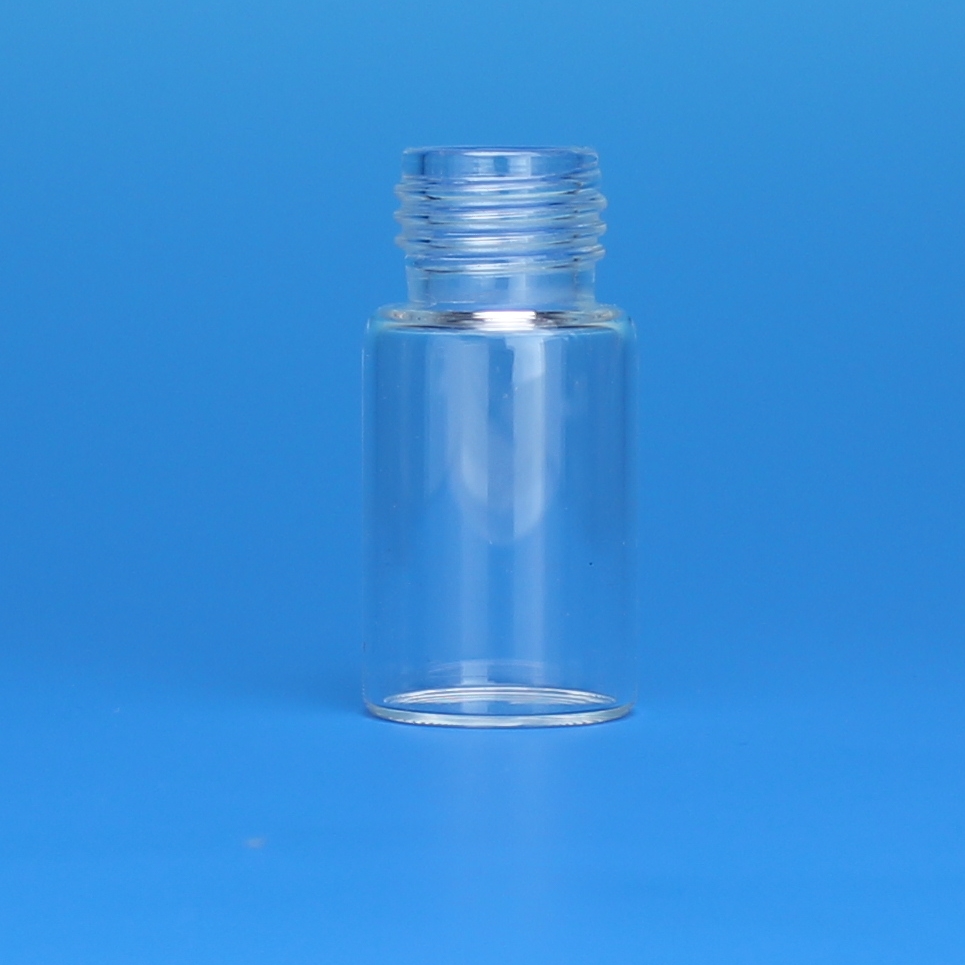

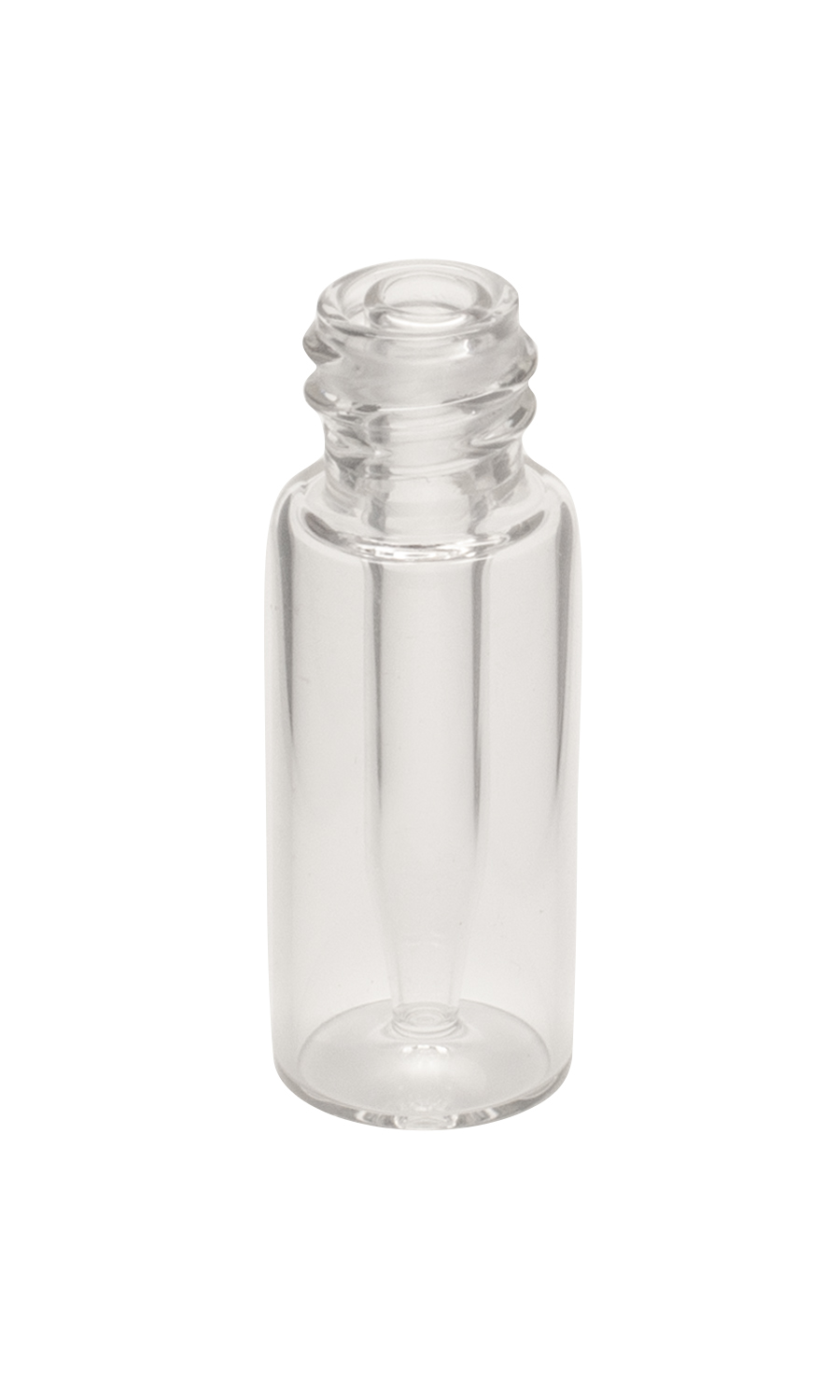

Threaded bottles, ND8, thread 8-425 mm, 12 x 32 mm, narrow opening

For use with various autosamplers that require a narrow opening

  • Available in brown or clear glass (borosilicate glass I), “Glastik,” polypropylene, or polymethylpentene (TPX) – depending on the application
  • Can be sealed with screw caps
  • Various micro inserts available
  • Sample volumes from 100 μl to 2.0 ml
  • With or without graduation and labeling field in various colors



Further information on Finneran products (PDF)

Snap ring closures “Snap Top Caps™” ND11

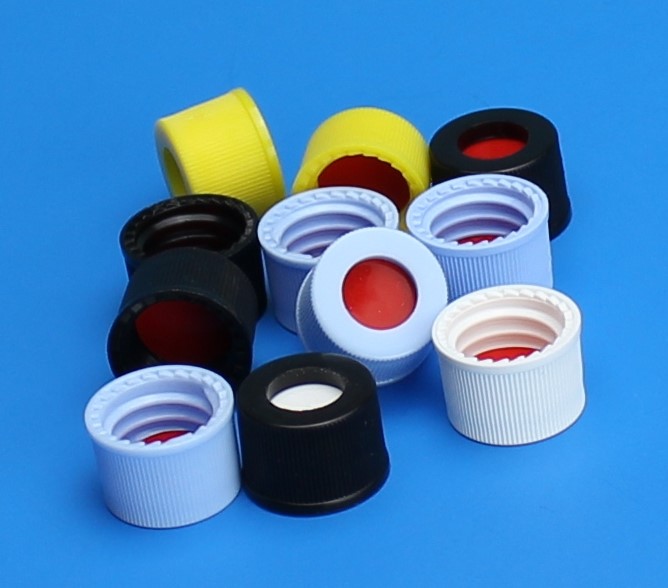

Screw caps for threaded bottles ND8 (8 – 425 mm)

  • Aus Polypropylen
  • A wide range of colors for easy sample identification
  • Large opening for an enlarged piercing surface or solid cap
  • Wide range of septa, seals, and pre-assembled closures available

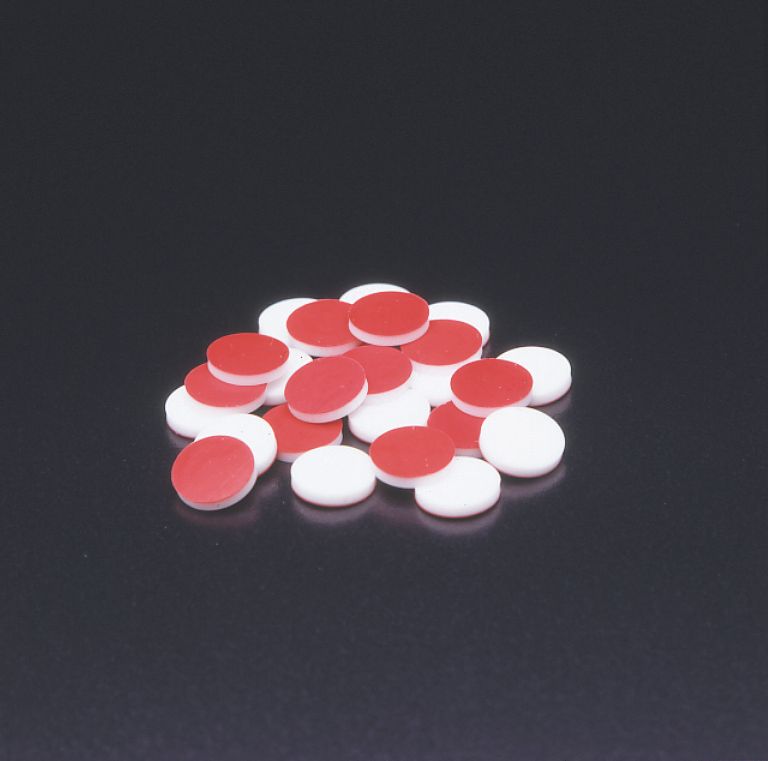

Septums ND8 for screw caps (8 – 425 mm)

  • Various strengths
  • Different materials suitable for your application



Further information on Finneran products (PDF)

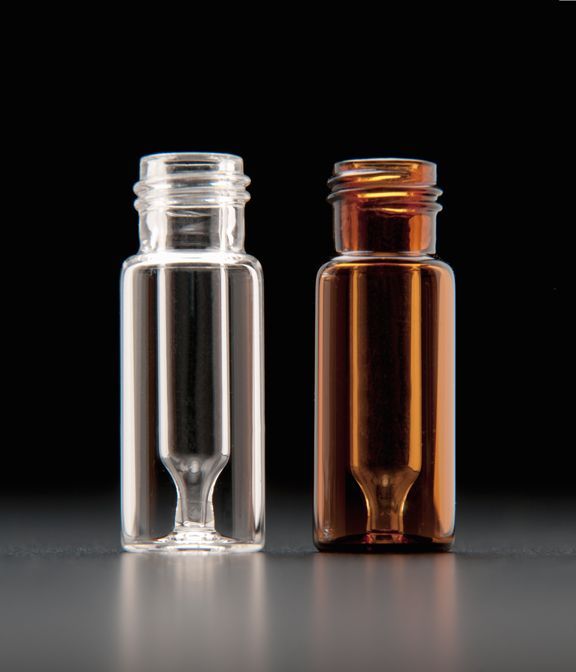

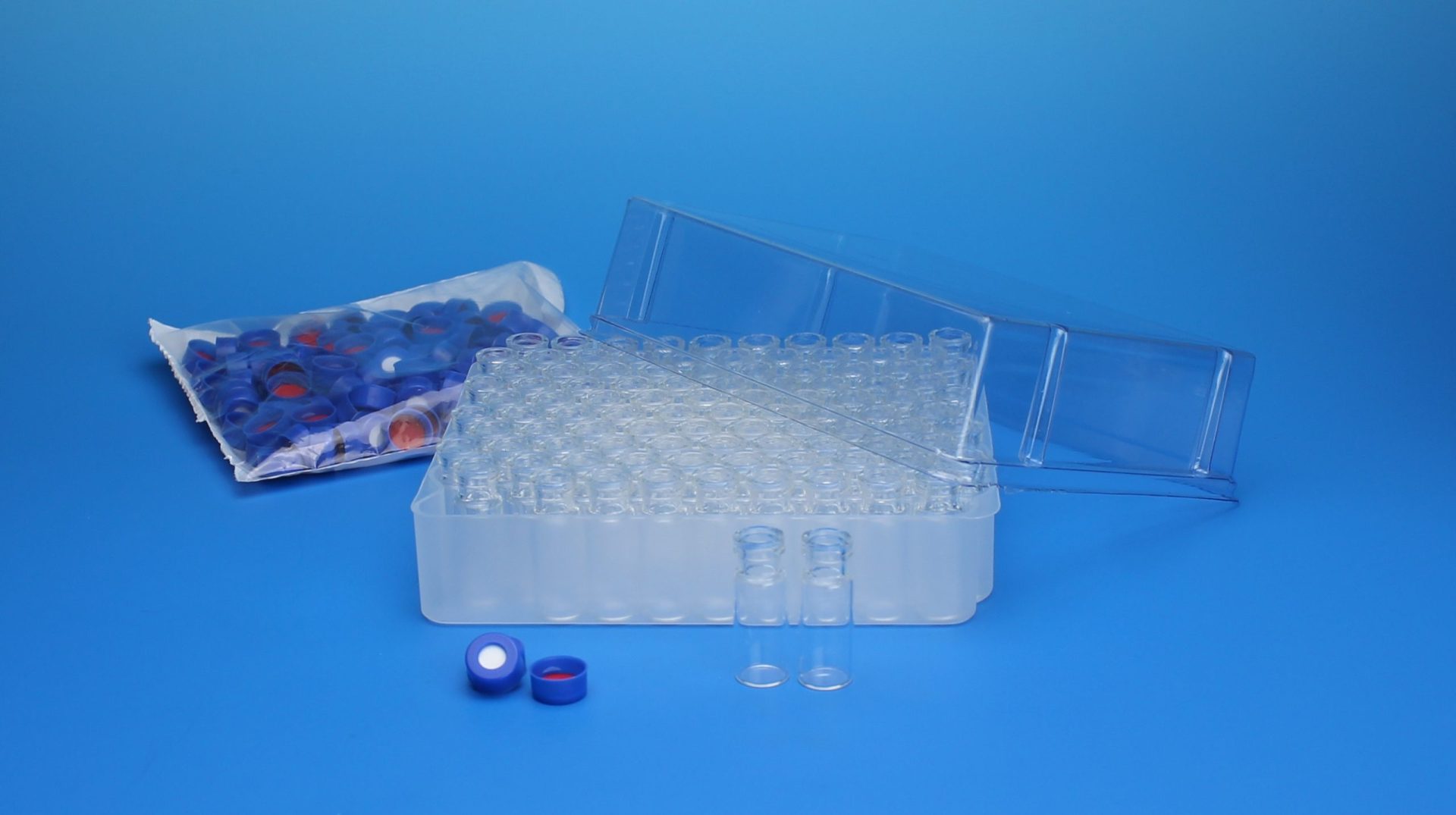

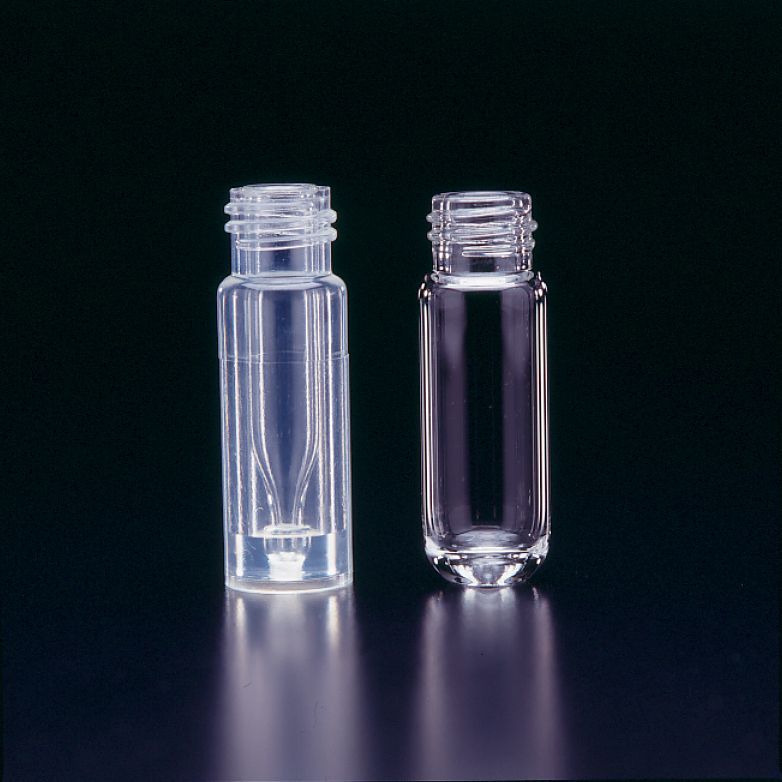

R.A.M.™ ND9 short thread bottles 12 x 32 mm

    • Suitable for common autosamplers such as Agilent, HTA, Shimadzu, Thermo Scientific, Varian, Waters, and others
    • Available in brown or clear glass (borosilicate glass I), “Glastik,” polypropylene, or polymethylpentene (TPX) – depending on the application
    • Various micro inserts available
    • Sample volumes from 100 μl to 2.0 ml
    • With or without graduation and labeling field in various colors



Further information on Finneran products (PDF)

Closures and septa ND9

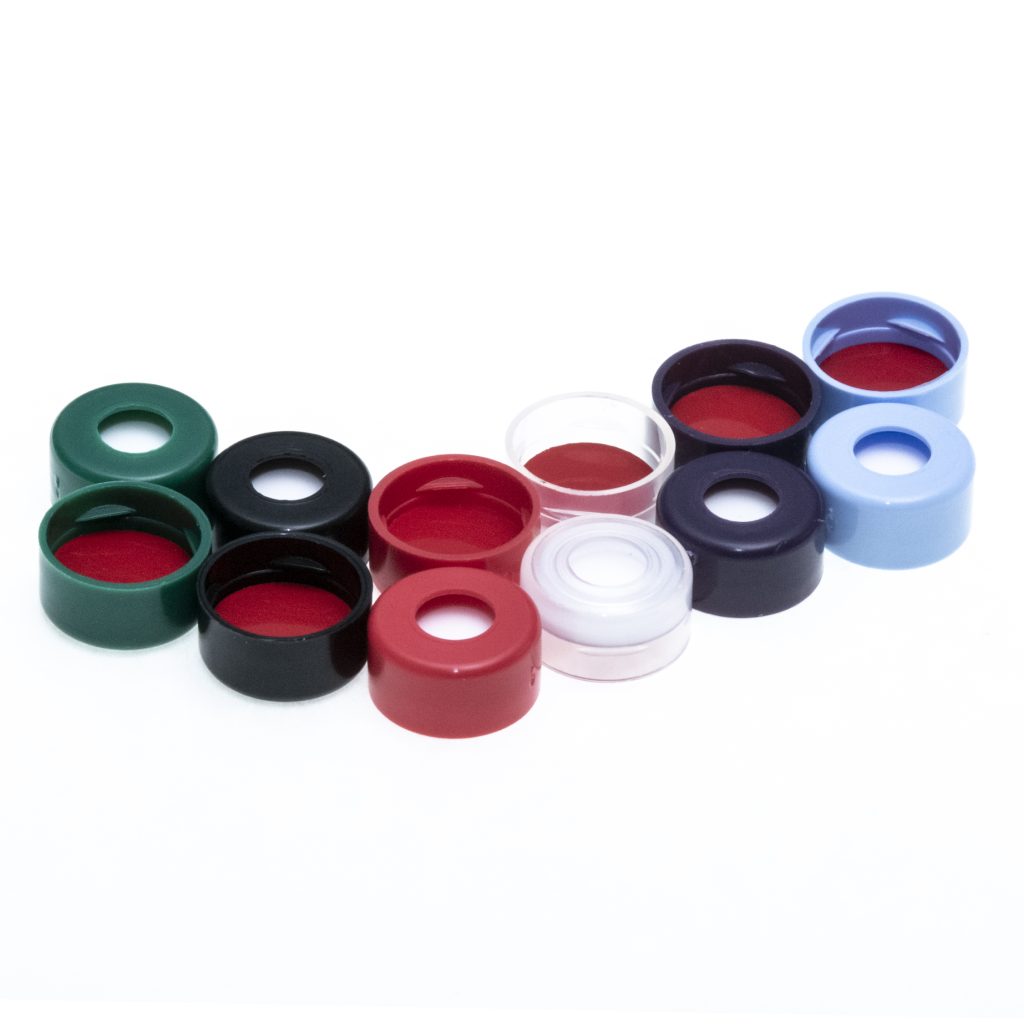

Screw caps for threaded bottles ND9

  • Aus Polypropylen
  • Smooth or ribbed edge
  • A wide range of colors for easy sample identification
  • Large opening for an enlarged piercing surface or solid cap
  • Wide selection of septa and seals



ND9 septa for screw caps, 9 mm short thread

  • Various strengths
  • Different materials suitable for your application



Screw caps ND9 with inserted sealing washers ND9

  • Aus Polypropylen
  • With polyimide/silicone seal for use in PFAS testing
  • Smooth or ribbed edge
  • A wide range of colors for easy sample identification
  • Large opening for an enlarged piercing surface or solid cap
  • Wide selection of septa and seals



Further information on Finneran products (PDF)

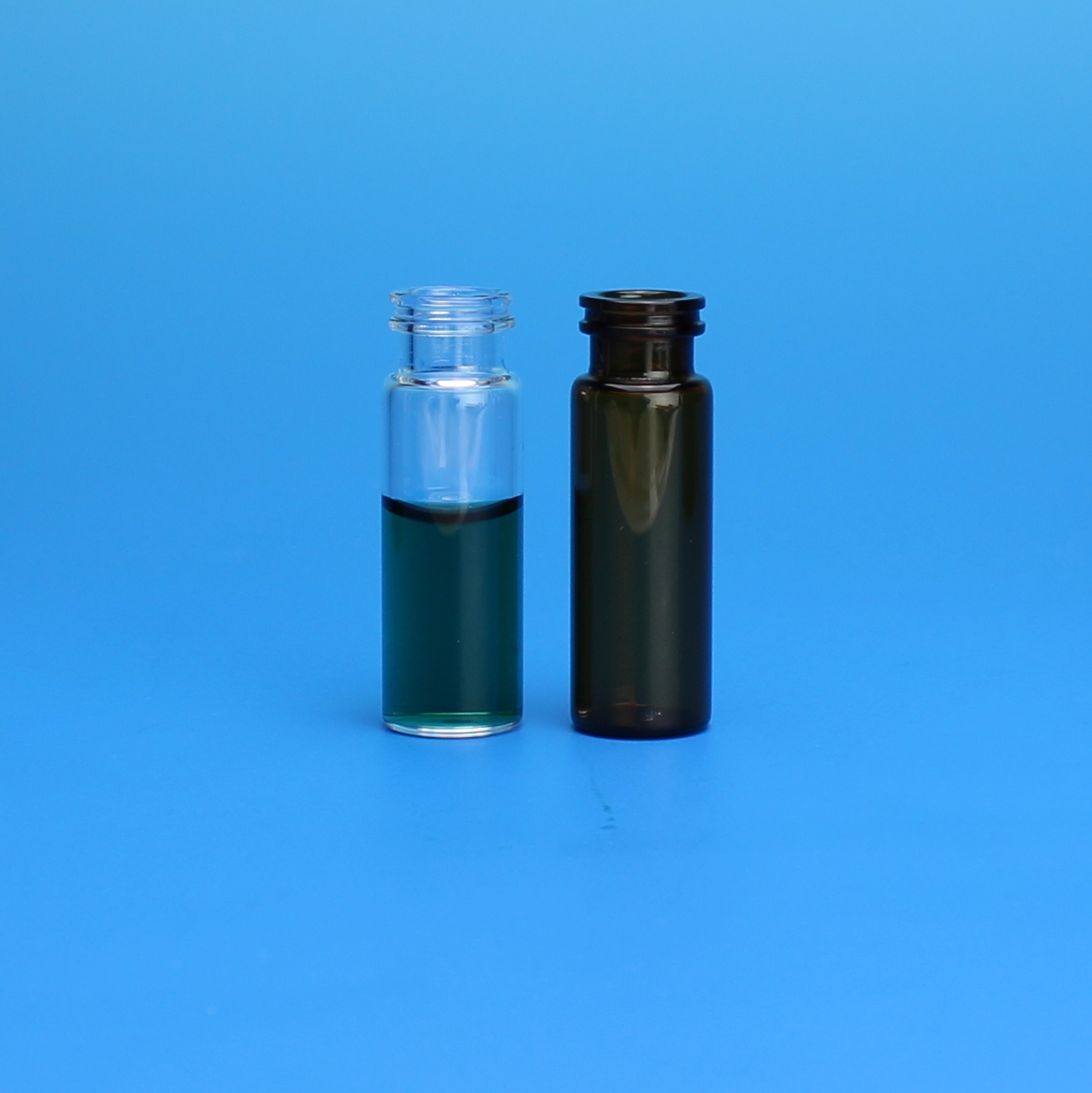

Threaded bottle, ND10, thread 10-425 mm, 12 x 32 mm, wide opening

    • 40% wider neck opening for fewer broken needles
    • Available in brown or clear glass (borosilicate glass I), polypropylene, or polymethylpentene (TPX) – depending on the application
    • Can be sealed with screw caps
    • Various micro inserts available
    • Sample volumes from 300 μl to 2.0 ml
    • With or without graduation and labeling field in various colors



Further information on Finneran products (PDF)

Closures and septa ND10

Screw caps for threaded bottles ND10 (10 – 425 mm)

  • Aus Polypropylen
  • A wide range of colors for easy sample identification
  • Large opening for an enlarged penetration area or solid cap
  • Wide range of septa and seals available



Septums ND10 for screw caps (10 – 425 mm):

  • Various strengths
  • Different materials suitable for your application



Ready-to-use screw caps ND10 (10 – 425 mm) with septa

  • Ribbed edge
  • Slotted and unslotted
  • Different septa suitable for your application



Further information on Finneran products (PDF)

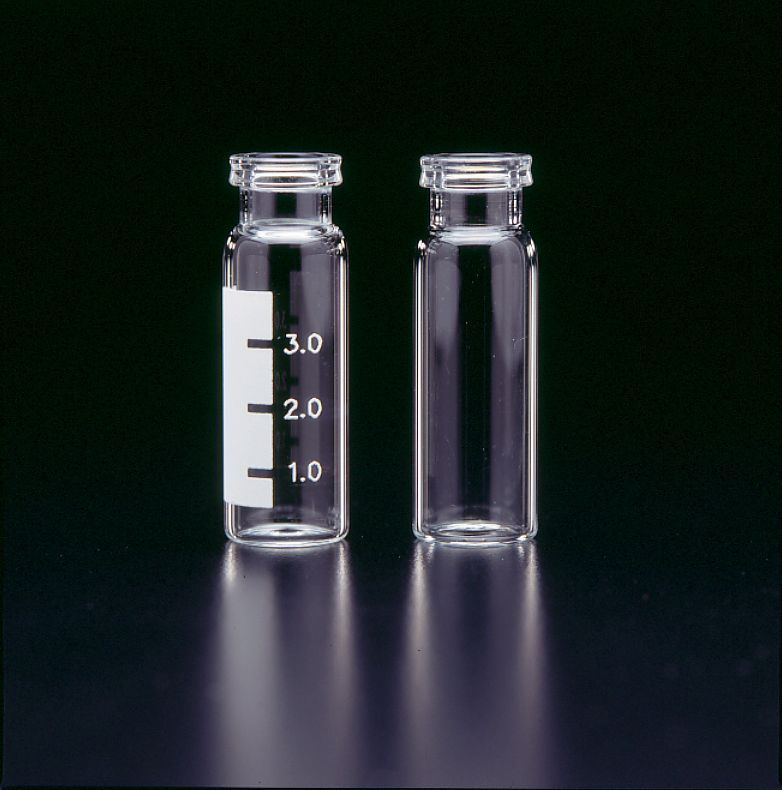

Snap ring bottle, extra reinforced bottle neck, 15 x 45 mm, 13 mm snap ring – rolled rim

    • The special bottle neck design allows the use of “Snap Top Caps™.”
    • No sealing pliers required
    • Particularly suitable for Shimadzu and Waters WISP™ 48-position autosamplers
    • Available in brown or clear glass (borosilicate glass I), “Glastik” or polypropylene – depending on the application
    • Can be sealed with aluminum crimp caps or “Snap Top Caps™”
    • 3 different micro inserts available
    • Sample volumes from 300 μl to 4.0 ml
    • With or without graduation and labeling field in various colors



Further information on Finneran products (PDF)

Flanged closures ND13

Aluminum caps ND13

  • Made of aluminum
  • Large opening for an enlarged piercing area



Further information on Finneran products (PDF)

Snap ring fasteners ND13

Snap Top Caps™ closures ND13

  • Easy to close without tools: saves time, money, and hassle!
  • Made of plastic
  • Wide selection of septa and seals



Further information on Finneran products (PDF)

Micro inserts for 15 x 45 mm sample bottles

Micro inserts suitable for:

  • Snap ring bottles with reinforced neck, 15 x 45 mm
  • Threaded bottles ND13, 15 x 45 mm, thread 13 – 425 mm



Variants:

  • Conical or cylindrical shape
  • With or without spring
  • Glass or polypropylene



Further information on Finneran products (PDF)

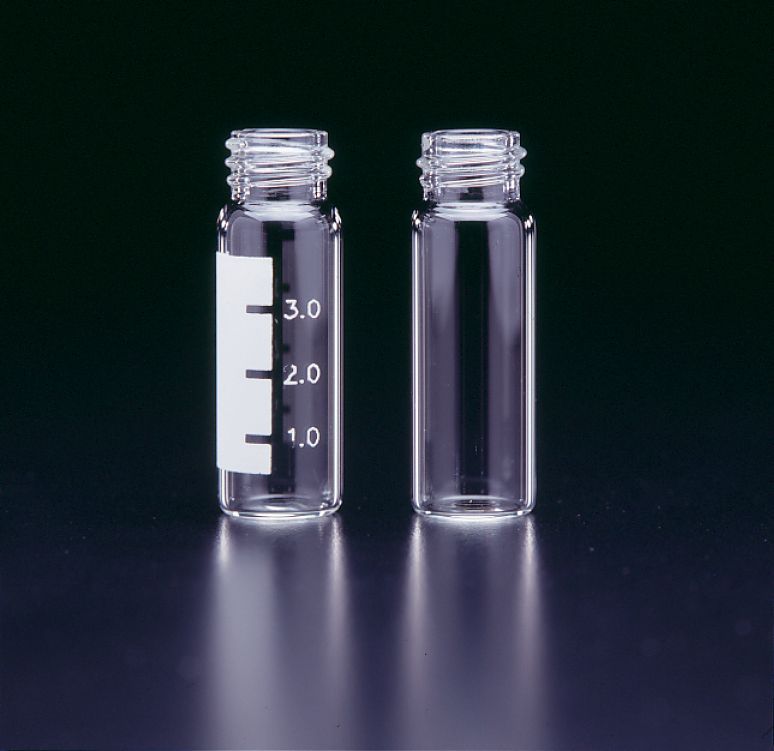

Threaded bottle, ND13, thread 13-425 mm, 15 x 45 mm

    • Suitable for Shimadzu and Waters WISPTM 48-position autosamplers
    • Available in brown or clear glass (borosilicate glass I), “Glastik” or polypropylene – depending on the application
    • Can be sealed with screw caps
    • Various micro inserts available
    • Sample volumes from 300 μl to 4.0 ml



Further information on Finneran products (PDF)

Multi-Tier™ 96-Well Microplate System for Biotechnology

The innovative and patented Multi-Tier™ 96-Well Micro Plate System from J.G. Finneran offers you a new dimension of flexibility in the common 96-Well format.

Due to its modular design, the Multi-Tier™ system helps you to quickly set up the perfect 96-well plate for your application. The vented base plate provides a secure fit for a variety of 9 mm OD vials manufactured from glass or polypropylene, while assuring uniform heating and cooling when immersed in a water bath. The reusable base plate is capable of securing 0.5 to 2.5 ml vials and thus replaces a variety of common 96-well and deep well plates in your lab. Additional spacers provide adjustable height to support different sized vials. The lid with an alphanumeric grid locks the liner in place and prevents vial pullout.

Molded PTFE/silicone liners lock into the 96 vials and seal them, thus preventing evaporation and cross contamination.

  • Standard 96-well footprint allows use with most instruments
  • Available in Aluminium, Topas (COC, Cyclic Olefin Copolymers) and ABS (Acrylic Butyl Styrene)
  • Alphanumeric grid on base plate and lid
  • Height adjustment through special spacers provides volume choices of 0,5 to 2,5 ml vials
  • Suitable for a variety of 9 mm white and amber glass or polypropylene vials with conical, flat, round or tapered bottom
  • Vented base plate for uniform heating and cooling
  • Fully autoclavable (only Topas and Aluminium)
  • Optional PTFE/Silicone/PTFE liner provides sample integrity
  • Plate cover locks the liner in place, provides firm vial positioning and a secondary sealing system
  • Compatible with all known autosamplers and robotic systems
  • Secure fit of the vials in the base plate permit use with shakers and vortex mixers during sample preparation



further information “Multi-Tier system” (PDF)

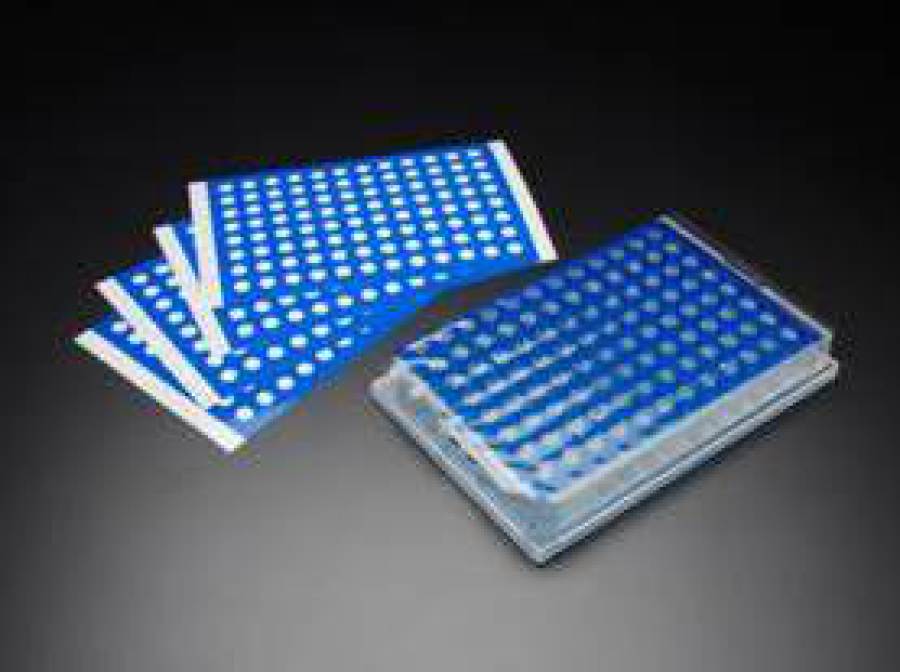

PTFE Sealing Film

  • 51 µm PTFE film, blue, patented
  • Clear adhesive-free area above each well prevents sample contamination through adhesive
  • Solvent-free adhesive adheres to polypropylene, polystyrene, and polycarbonate
  • Compatible with aqueous solutions and organic solvents
  • Excellent chemical resistance, also resistant to DMSO
  • Functional temperatures range: -80 °C to +120 °C



further information: “Sealers” (PDF)

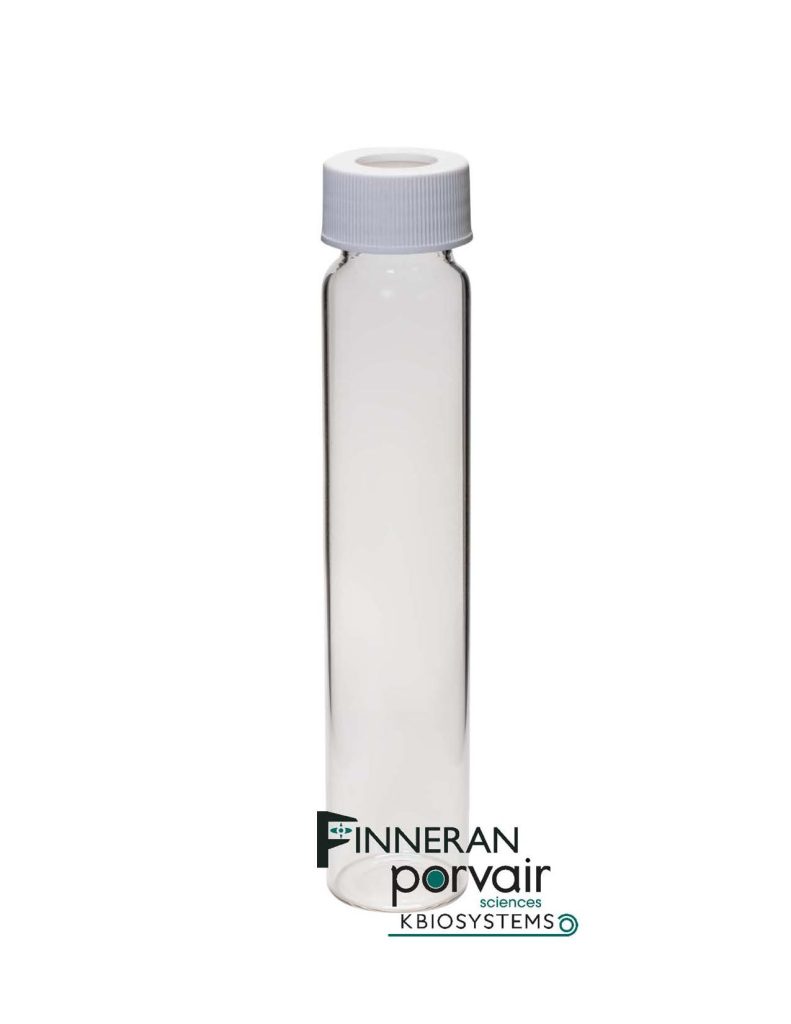

Environmental Analysis – Seals, Bottles and Lids

  • A broad range of bottles in clear or amber Borosilicate glass, high density polyethylene or laboratory grade plastic with different openings, closures and liners.
  • Glass bottles available cleaned or not cleaned, or cleaned and certified in accordance with recommended E.P.A. protocol. High density polyethylene bottles available cleaned or not cleaned.
  • Glass VOA vials with open top closures and septum or solid top closures
  • Amber glass wide mouth bottles for UV light-sensitive liquid samples

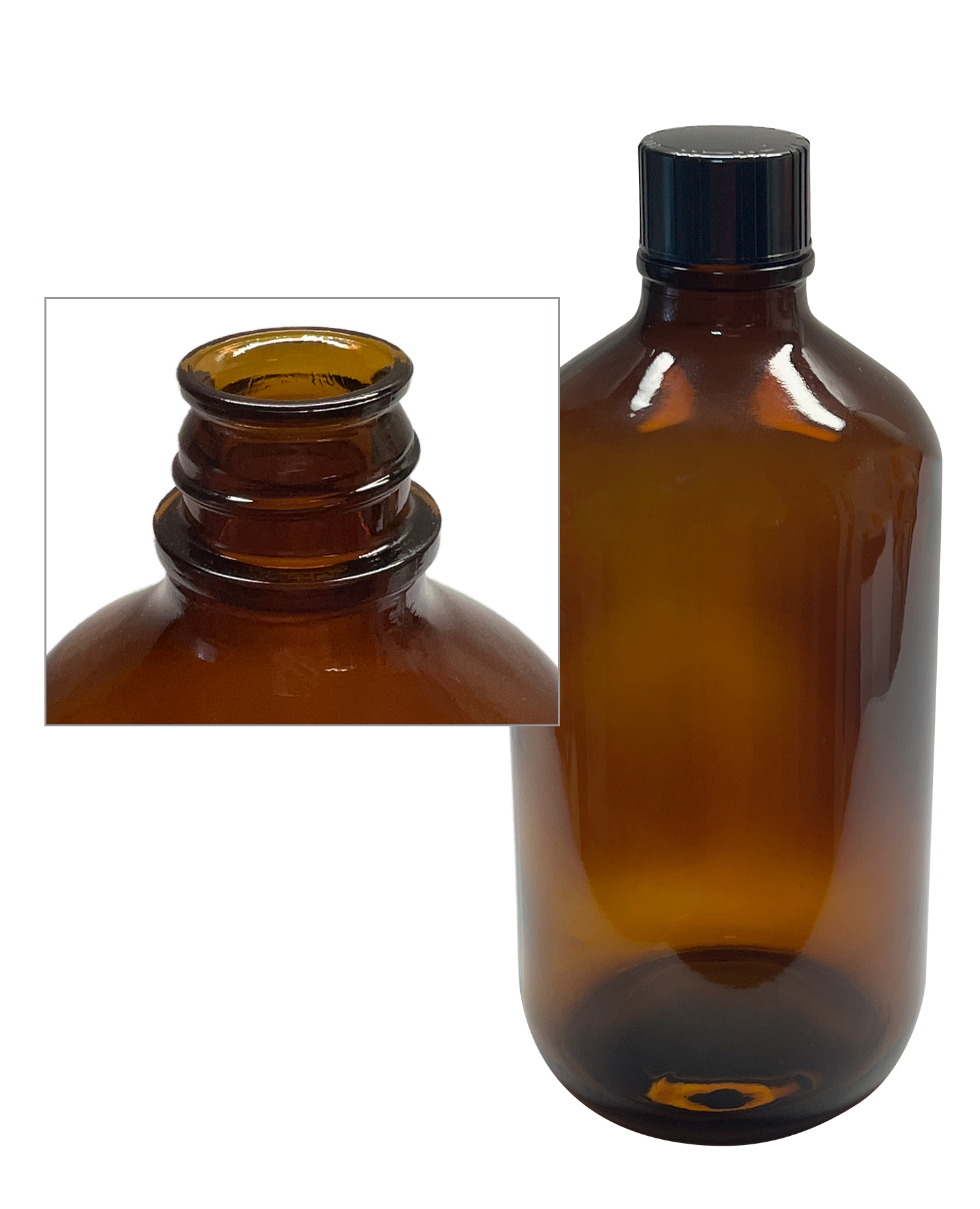

  • Boston round glass bottles
  • Clear glass wide mouth jars, short or tall, ideal for soil, sediment and sludge sampling
  • High density polyethylene bottles with narrow mouths
  • Laboratory grade plastic bottles
  • Glass septum bottles with wide or narrow mouth
  • PTFE cap liners and solid top closures with liners



further information on page 24 in “Finneran brochure” (PDF)
