Laboratory Equipment from IBI Scientific (Stovall)

Shaker Belly Button
Shaker Belly Dancer
Blotting System
Electrophoresis System
Controller Blot-Washer
Hi/Lo Profile Rocker
Roller Mixers
Shaking Water Bath
Flow Cell for real-time studies of biofilms

Contact Person

Jennifer Szlapa

Similar products

ShelLab/Sheldon

Bellco Glass Inc. – Laboratory Equipment

Shaker “Belly Button”

Suitable for gel and blot applications
Very compact version of the “Belly Dancer” (see below), fits also into smaller incubators
Platform tilt is adjustable up to 8 °
Ambient temperature operation: 0 °C to 60 °C
Can be used in incubators and cool rooms
Speed control: 6 – 100 rpm
Maximum load: 2.3 kg
Dimensions (w x d x h): 203 x 203 x 133 mm
Optionally available: non-skid mat for shaking tubes (see picture)

further information about IBI (PDF)

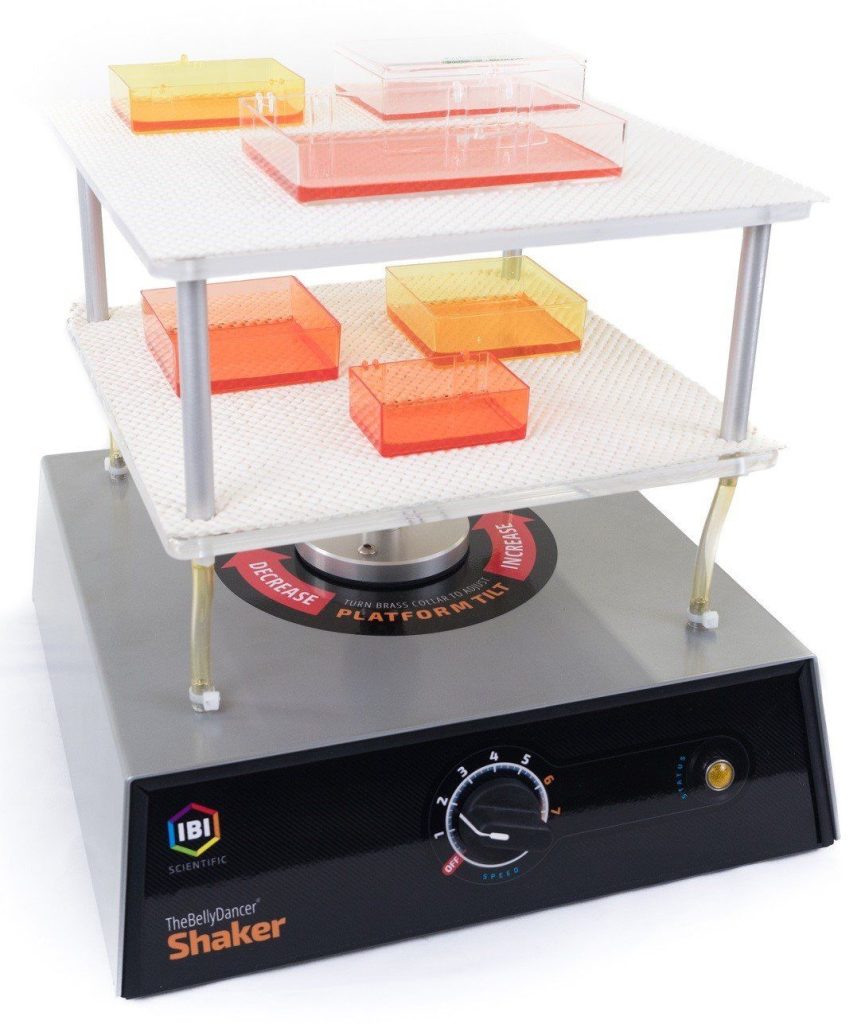

Shaker “Belly Dancer”

Suitabel for gel and blot applications
Continuous gentle or thorough shaking
Unique three dimensional motion guarantees accurate mixing action and offers the possibility to stack blotting trays
Durable construction, low noise level
Ambient temperature operation: 0 °C to 40 °C
Can be used in incubators and cool rooms
Speed control: up to 100 rpm
Maximum load: 9.1 kg
Platform size: approx. 300 x 300 mm
Dimensions (w x d x h): 381 x 381 x 229 mm
Additional platform can be added (see picture)

further information about IBI (PDF)

Blotting Systems

Blot Boxes in different sizes and colours
Blot Washer for automation of washing steps
Immunoblotter for easy and economic application of primary and secondary antibodies
Semi-Dry Blotters
Western-Blot Transfer System for “wet” blotting

further informationen about equipment for mol.-bio (PDF)

Electrophoresis Systems

For multiple gel sizes
Suitable for standard and high-throughput applications
Horizontal or vertical chambers
Power supplies

further informationen about equipment for mol.-bio (PDF)

Control unit “Blot-Washer”

- The “Blot Washer” is a control unit with an integrated pump, ideal for automating the washing steps of Western blots.
- Up to 10 different wash programs can be stored
- Washing time programmable from 1 minute to 99 hours
- Simultaneous processing of up to 4 trays of different sizes
- Dispensing rate: approx. 2 ml/second
- Aspiration rate: approx. 5 ml/second
- Includes two 4-liter bottles and 2 blot bowls
- Ideal for combining with “Belly Dancer” (not included)
- Accessories for the “Blot-Washer,” such as connecting hoses, clamps, clips, trays, bottles, etc., are available on request.

Further information about IBI (PDF)

Hi/Lo Profile Rocker

Space saving low profile design, stainless steel
Autoclavable (without motor)
Gentle to vigorous shaking motion
Speed control: 0 – 22 motions/minute
Platform tilt is adjustable from: 2 ° – 11 °
Ambient temperature operation: 0 °C to 60 °C
Can be used in incubators and cool rooms
Maximum load: 9.1 kg
Platform with non-skid mat: 305 x 305 mm
Option: extended capacity with up to 3 additional platforms
Distance between platforms (if more than one is used): 114 mm
Dimensions (w x d x h): 349 x 400 x 44.5 mm (without additional platform)

further information about IBI (PDF)

Roller Mixers

Space saving low profile design
Available with 6 or 11 rolls (6 rolls model can be extended to 11 rolls)
Suitable for culture and hybridization bottles or tubes due to removable rolls, dimension of one roll (Ø x l): 29 x 254 mm
Can be used with 3 big culture bottles (850 cm²), 4 hybridization bottles or with up to 30 tubes (10 x 75 mm), if used with 11 rolls
Maximum load: 4 liter liquid
Speed control: 2 – 38 rpm
Ambient temperature operation: 0 °C to 60 °C
Dimensions (w x d x h): 362 x 381 x 60.5 mm

further information about IBI (PDF)

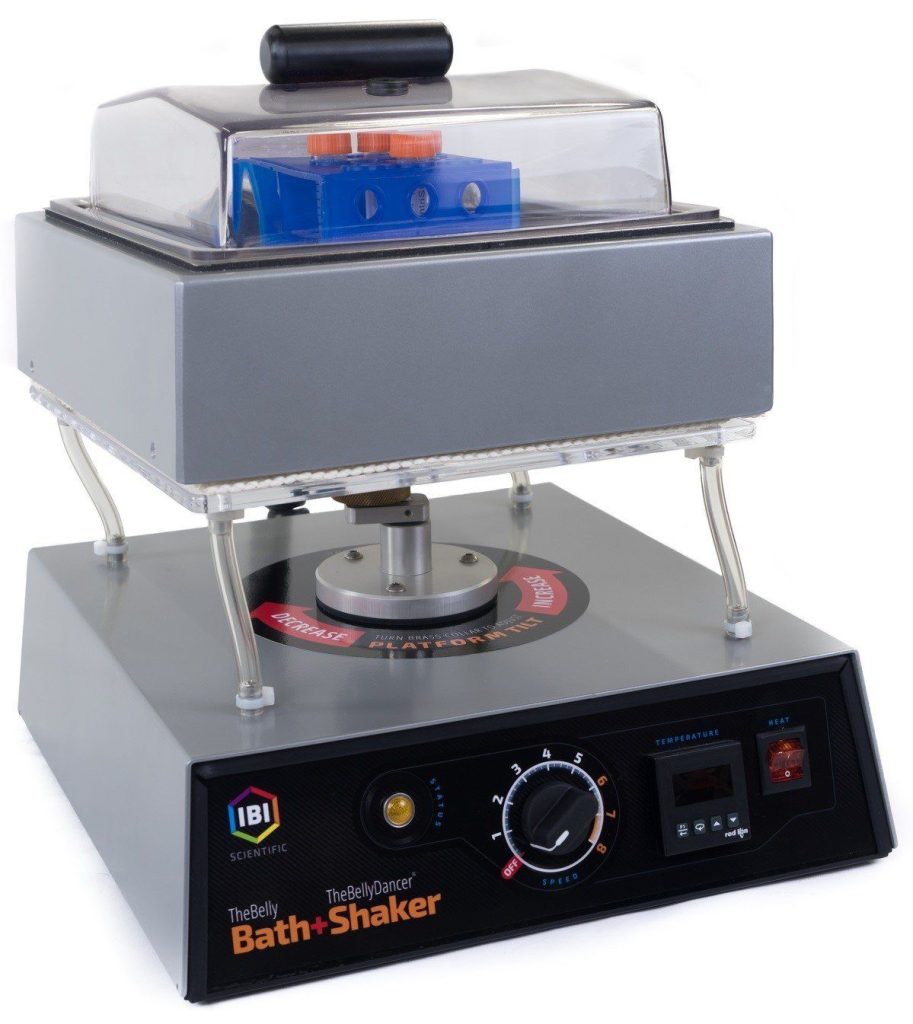

Shaking Water Bath

Combination of modified “Belly Dancer” (see above) and hybridization water bath
Units can also be used separately
Separation of shaker and water bath offers the possibility for easy cleaning and decontamination when working with radioactive material
PETG gable bath lid (thickness: 5 mm) against evaporation and beta radiation
PID microprocessor heat control, safety thermostat
Temperature range: 30 °C to 75 °C
Quick heating, 3 °C rise per minute
Excellent temperature control and stability: ± 0.2 °C

further information about IBI (PDF)

“Flow Cell” for real-time studies of biofilms

Apparatus for creation of biofilms and for real‑time, non‑destructive microscopic study of biofilms
Ready to use with peristaltic pump and media bottle
Available as convertible single channel or as triple channel chamber
Single use, gamma irradiated chambers eliminate risk of cross contamination
Air bubble trap available
Complete systems and single components in our portfolio

further information about Flow Cell (PDF)
